GIC Analog Hour Meter is used as a Universal Application to monitor and Log equipment running time to assure proper maintenance of expensive machines.
GIC Analog Hour Meter is a Time counter that comes with Three terminals (A, A1, A2)for power supply to start the count and it is a non-resettable feature that is handy in maintenance and service applications as no one can tamper with the meter readings to track warranty programs.GIC 30A6B1 is applicable in Single Phase 90-264VAC(terminal A1, terminal A2), Three phase 270-460VAC (terminal A, terminal A2) Power Source.
Hour meters are needed in industrial machines because these types of equipment are more sensitive and have complex components that require monitoring and regular maintenance and also eliminates the guesswork with elapsed hours for better machine resale value, or logging actual time on your rental products. The GIC digital hour meter can be installed, and it will count the hours the machine was running according to that the management can understand when the machine is due for upkeep and maintenance. Some of the applicable industries like Power Generation Systems, oil and mining sectors, Oil & Gas, IT & Telecommunication, Agricultural, Aerospace & Defense, Electronics & Consumer Goods, Chemicals, Automotive, Healthcare, Aviation, Construction, etc...
|Supply Voltage||90 - 264 / 270 - 460 VAC|
|Power Consumption (Max.)||1 VA Max|
|Register||6 Digit (3.6mm)|
|Least Count||1/10 h|
|Accuracy||± 0.02% over the entire range|
|Vibration||10-80Hz with 20g max (SAE J1378)|
|Shock||55g @ 9-13ms (SAE J1378)|
|Temperature||-20° C to +70° C|
|Humidity (Non-Condensing)||95% (Rh)|

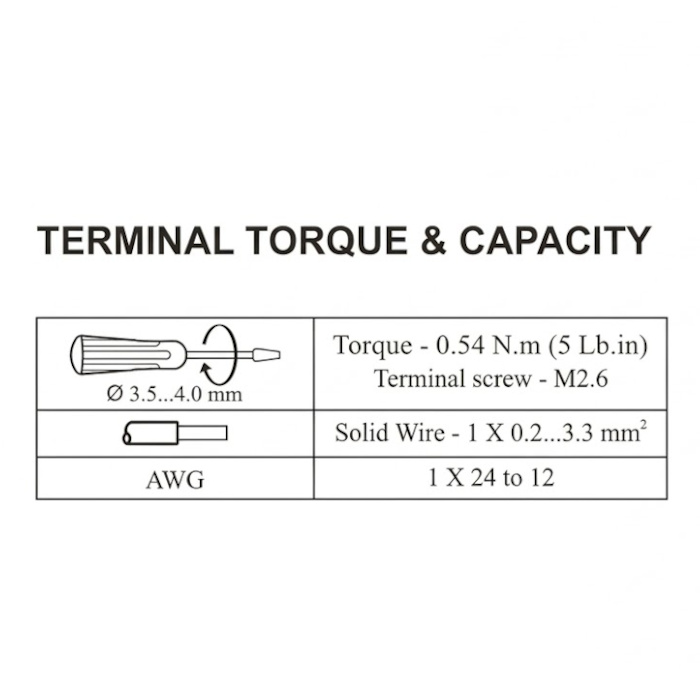

|Termination||¼" [6.3] Spade Terminal|
|Degree of Protection||IP 20 for Terminals
