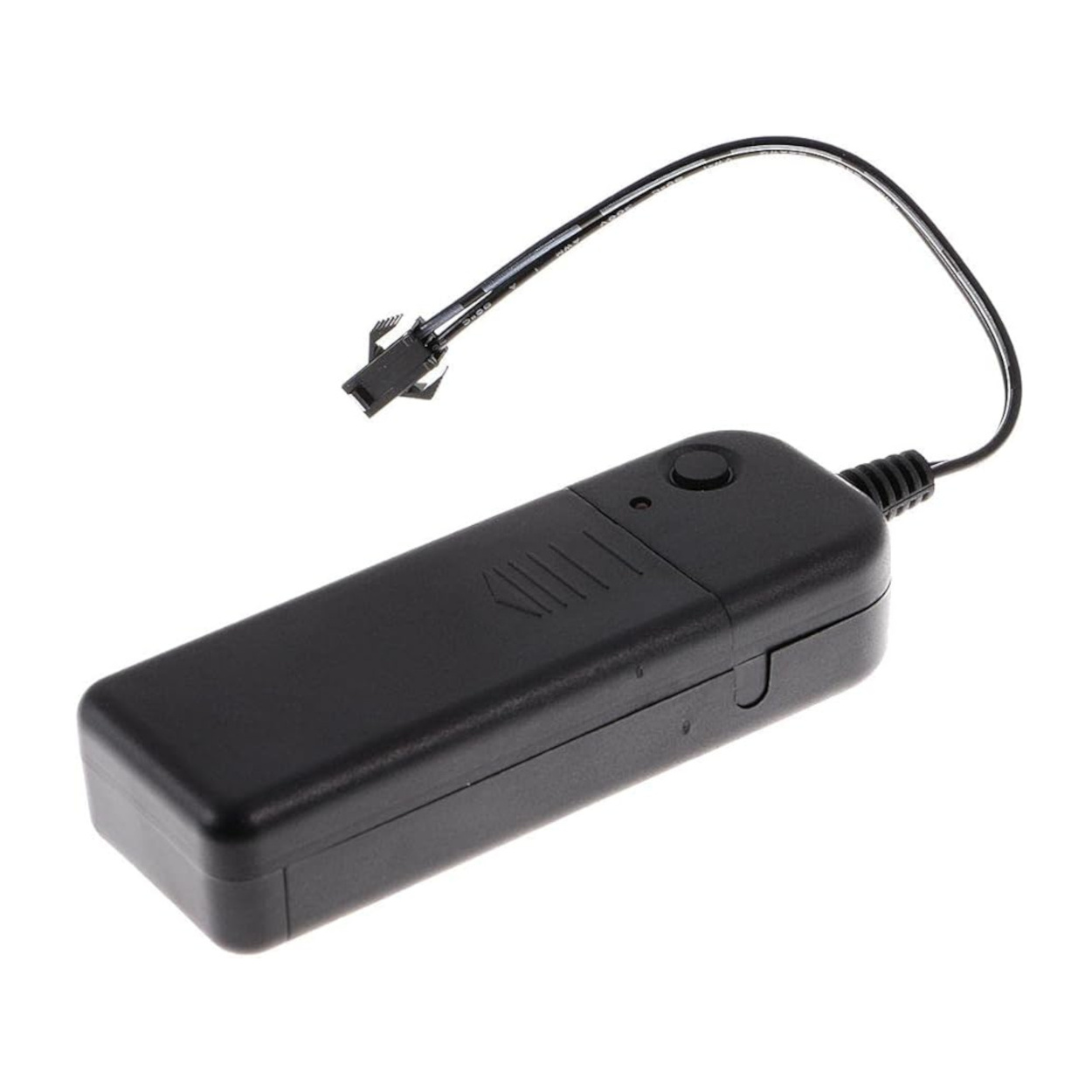

EL wire 2xAA Pocket Inverter DC 3V, 1-5M

Specifications:

• Input Power: 3V DC (Requires 2x AA Batteries - Not Included)
• Output Power: High-Voltage, High-Frequency AC (Optimized specifically for EL Phosphors)
• Driving Capacity: Powers 1 Meter up to 5 Meters of standard 2.3mm EL Wire
• Lighting Modes: 3 Modes (Steady On, Slow Blink, Fast Blink)
• Connector Type: JST-SM 2-Pin Female (Standard EL Wire connector)
• Dimensions: Approx. 90mm x 33mm x 20mm (Pocket/Concealable size)
• Mounting: Features a built-in heavy-duty plastic belt clip
• Housing Material: Matte black ABS plastic

Key Applications:

• Wearable Cosplay: Powering glowing outlines on anime jackets, mecha suits, or Cyberpunk armor without being tethered to a wall.
• Festival & Rave Gear: Clipping onto a hydration backpack or fanny pack to power neon flashing lights for nighttime visibility and aesthetics.
• Portable Props: Hiding inside the hilt of a sci-fi sword or a glowing magical staff.
• Nighttime Bicycles & Skateboarders: Wrapping wire around a bike frame or backpack and clipping the battery pack under the seat for high-visibility safety.
• Quick Prototype Testing: A perfect bench-tool to quickly test EL wire cuts and colors before permanently wiring them into a 12V car or 5V USB setup.

Project Evolution

• Past Projects (The Prerequisite): You might have bought EL wire but tried to hook it up to standard DC batteries or an Arduino, only to find that it wouldn't turn on or glow.

• Feature Upgrade (The Unlock): This inverter converts standard 3V DC battery power into the precise High-Frequency AC needed to excite the wire. It unlocks True Portability, allowing you to wear your neon creations anywhere, complete with dynamic flashing modes.

• Effort Level: Beginner (Strictly Plug-and-Play).

• Minimum Hardware: 1 to 5 Meters of EL Wire + 2x AA Batteries.

Virtual Technician & Wiring

Safety Warning: This device converts 3V DC to high-voltage AC (approx. 100V AC at high frequency). Never touch the exposed ends of the EL wire or the internal circuit while the unit is powered on.

• Pin Mapping: The output uses a standard JST-SM connector. Red/Black polarity on the battery side is handled by the battery compartment. The AC output to the EL wire is non-polarized.

• Pro-Tip: If the inverter makes a faint high-pitched humming sound, don't worry—that is the high-frequency transformer working and is normal for all EL drivers.

Package Includes:

1 X EL wire 2xAA Pocket Inverter DC 3V, 1-5M

Frequently Asked Questions (FAQ)

1. Does this inverter include the EL wire?
   No, this is the power driver only.
2. How long will the batteries last?
   Typically 8-12 hours depending on the length and quality of the batteries used.
3. Can I power 10 meters of wire with this?
   No, this is optimized for 1-5 meters. Overloading it will result in very dim light.
4. Why does the inverter make a buzzing sound?
   This is the high-frequency oscillation required to excite the phosphor in the EL wire.
5. Is this inverter waterproof?
   No, the housing is not sealed. Keep it dry.
6. Can I use rechargeable NiMH batteries?
   Yes, though the light may be slightly dimmer than with 1.5V Alkaline batteries.
7. What connector does it use?
   It uses a standard 2-pin JST-SM connector.
8. Can I cut my EL wire if it's too long?
   Yes, you can cut EL wire at any point; just ensure you seal the end with an end-cap or heat shrink.
9. Will this work with EL tape or EL panels?
   Yes, as long as the total surface area is equivalent to 1-5m of wire.
10. How do I change the flash mode?
    Use the push-button on the front of the unit to cycle through modes.
11. Is there a brightness control?
    No, the brightness is fixed.
12. Can I power this from a 5V USB port?
    No, this specific model is designed for 3V only. Using 5V will damage the circuit.
13. Is the belt clip removable?
    It is integrated into the battery cover.
14. Does it get hot during use?
    It may get slightly warm, but should not get hot. If it does, check for shorts in your EL wire.
15. Can I use a 2-way splitter with this?
    Yes, you can drive two 2M wires using a splitter.
16. What is the output voltage?
    Approximately 90V-110V AC at a high frequency.
17. Can I wash the inverter if it's on a costume?
    No, the inverter must be removed before washing any garment.
18. Is it safe for children's costumes?
    Yes, provided the wiring is properly insulated and the battery box is secured.
19. What happens if I run it without EL wire attached?
    It is not recommended to run the inverter "dry" for long periods as it can stress the transformer.
20. Where is this product tested?
    This is Probots™ Lab Verified ???? in our Bangalore facility
