Precision Spiral Push Hand Drill - Semi-Automatic Pin Vise with 10x HSS Micro Drill Bits

FREQUENTLY ASKED QUESTIONS (FAQ)

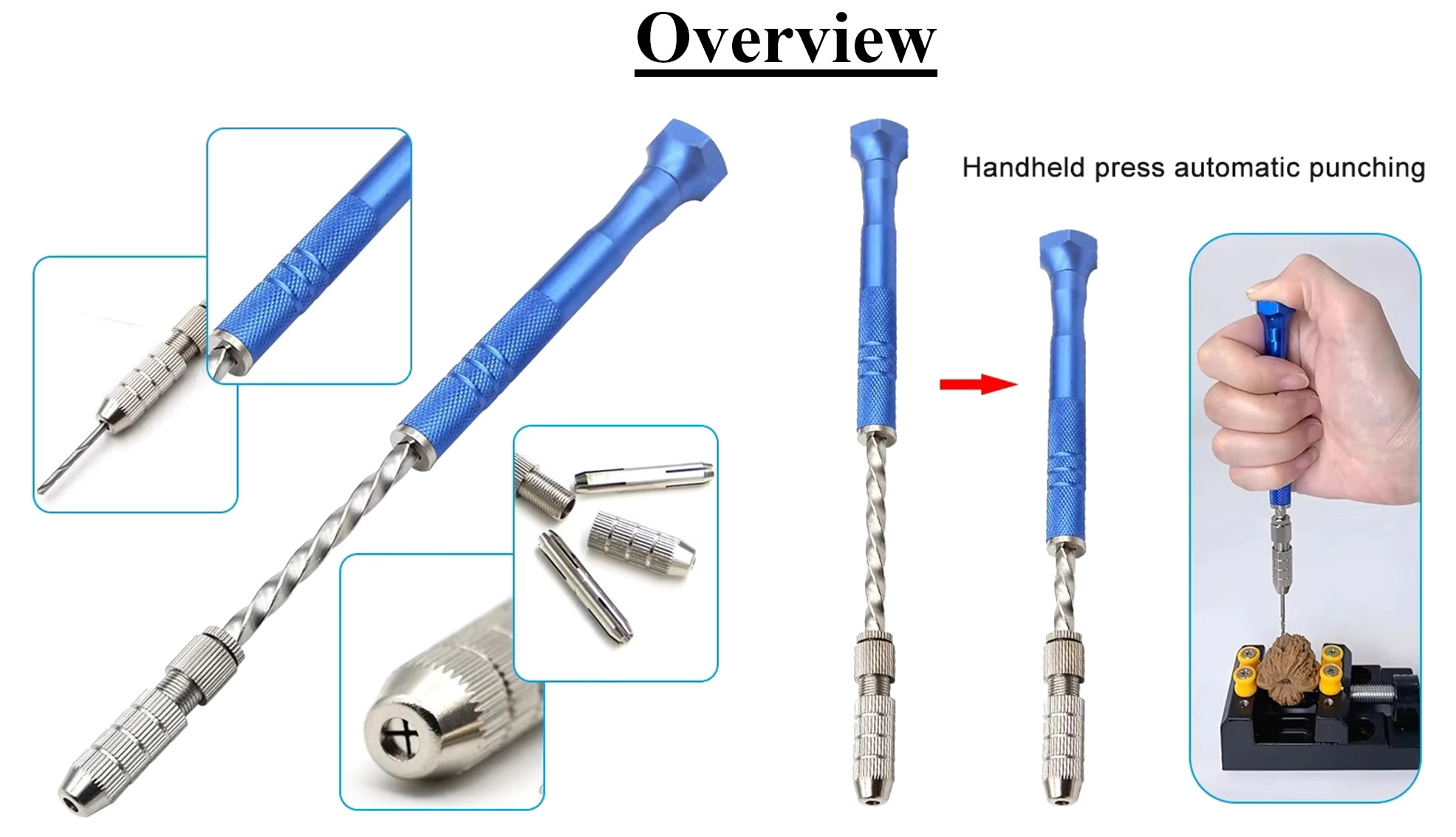

1. How is this different from a normal pin vise? A normal pin vise requires you to manually twist your fingers and wrist to spin the drill bit. With this tool, you just push the handle straight down, and the spiral shaft automatically spins the bit for you.

2. Does it require batteries? No, it is a 100% manual, mechanical tool. The plunging motion of your hand provides the rotary power.

3. What sizes of drill bits are included? The kit includes 10 sizes: 0.8, 1.0, 1.2, 1.5, 1.8, 2.0, 2.2, 2.5, 2.8, and 3.0 millimeters.

4. What material are the drill bits made of? They are made of HSS (High-Speed Steel), which is durable and stays sharp through repeated use on tough materials.

5. Can I drill through metal with this? You can drill through soft metals like copper-clad PCBs, brass, and thin aluminum. It is not designed to drill through hardened steel or thick iron plates.

6. Can I drill through glass or ceramic? No. HSS twist drills will instantly dull and fail on glass or ceramic. You need specialized diamond-coated burr bits for those materials.

7. Why is my drill bit slipping or falling out? You are likely using the wrong collet size. Unscrew the knurled chuck and flip the internal collet around, or swap it with the second collet stored inside the tool body, to find the jaw size that perfectly matches your bit.

8. Where is the second collet located? If you unscrew the very top cap of the blue handle, or look inside the main chuck shaft, you will find the spare dual-sided collet hidden inside the tool's body.

9. What is the maximum drill bit size it can hold? The largest collet jaw will accept a maximum shank diameter of 3.0mm (0.12 inches).

10. How long is the tool? Uncompressed, the tool is 190mm (roughly 7.5 inches) from the top of the handle to the tip of the chuck.

11. Does the blue handle spin in my hand? No. The blue anodized handle features an internal bearing. You grip the handle firmly, and only the silver spiral shaft below it spins.

12. Is it heavy? No, the aluminum and steel construction keeps the tool at a very lightweight 62 grams, allowing for delicate control.

13. Will this break my tiny 0.8mm bits? Micro bits are inherently fragile. You must press straight down with perfectly vertical pressure. If you press down at an angle, the lateral force will snap the 0.8mm bit instantly.

14. Does it drill on the down-stroke or the up-stroke? It spins and cuts primarily on the downward push stroke. As the spring returns it to the top, it spins in reverse, helping to clear the chips out of the hole.

15. Can I use this as an electric screwdriver? No, it does not have the torque required to drive screws, and it spins the wrong direction on the upstroke. It is strictly for drilling holes.

16. Is it suitable for 3D printed plastics like PLA and PETG? Yes! It is fantastic for cleaning out undersized screw holes or adding pilot holes to 3D printed parts without melting the plastic (which high-speed electric rotary tools often do).

17. Can I use standard Dremel rotary bits in this? Standard Dremel bits typically have a 1/8" (3.175mm) shank. This chuck only opens to 3.0mm, so standard Dremel bits will likely be too thick to fit.

18. How do I maintain the tool? Keep the silver spiral shaft free of heavy dust and grit. Applying a single drop of light machine oil to the spiral grooves occasionally will keep the push-action smooth.

19. What are the dimensions of the drill bit box? The clear plastic storage case is very compact, measuring roughly 45mm wide by 64mm tall.

20. Can a child use this for crafts? Yes, because it lacks a high-powered electric motor, it is a very safe way to introduce older children (with adult supervision and safety glasses) to drilling and woodworking.
