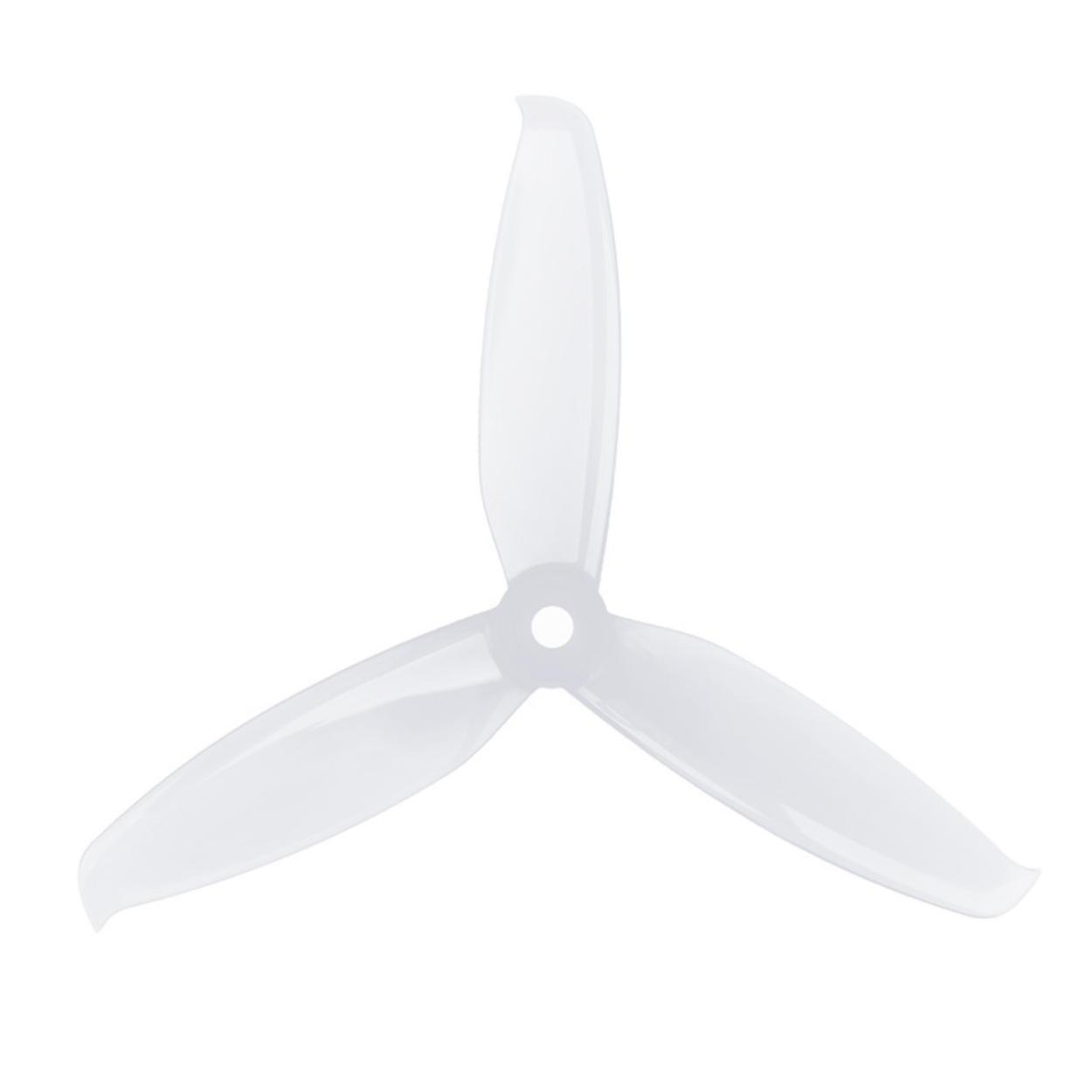

GemFan 5.1 Inch 5042 Tri-Blade FPV Propellers - Clear Polycarbonate (Set of 4)

FREQUENTLY ASKED QUESTIONS (FAQ)

1. What do the numbers "5042" mean? In FPV terminology, the first two numbers (50) refer to the general diameter class (5.0 or 5.1 inches). The last two numbers (42) refer to the pitch of the blade, which is 4.2 inches.

2. What does "pitch" actually do? Pitch is the theoretical distance the propeller would move forward in one full rotation through a solid medium. A higher pitch (like 4.2) "bites" more air, giving you faster top speed and punch-out power, but it draws more amps from your battery.

3. Are these for 4-inch or 5-inch drones? These are exclusively for 5-inch drone frames. They measure 5.1 inches across, so you must ensure your frame has enough clearance so the props don't hit the central body or each other.

4. What is the mounting hole size? The center bore is exactly 5mm, which fits the standard M5 threaded shafts found on almost all modern 5-inch drone motors.

5. How much does a single propeller weigh? Each propeller weighs approximately 4.9 grams, which is an excellent weight for fast motor spool-up times.

6. What size motors are best for these props? These are ideal for standard 5-inch freestyle and racing motors, typically stator sizes ranging from 2205, 2207, to 2306, running anywhere from 1700KV (for 6S batteries) to 2400KV (for 4S batteries).

7. Why are there CW and CCW propellers in the pack? A quadcopter requires two motors spinning clockwise and two spinning counter-clockwise to cancel out rotational torque. You must put the CW props on the CW-spinning motors, and CCW props on the CCW-spinning motors.

8. How do I know which one is CW and which is CCW? Look at the leading edge (the thickest, highest part of the blade). The prop must spin in the direction that the leading edge cuts into the air.

9. Can I use these on a DJI FPV drone? No. The DJI FPV drone uses a proprietary quick-release mounting system. These use a standard 5mm shaft hole that requires an M5 locknut.

10. What material are these made from? They are made from Polycarbonate (PC), which is known for being highly durable, flexible, and resistant to shattering upon impact.

11. Are clear props weaker than solid colored ones? No. They are made from the exact same polycarbonate resin base. The only difference is the lack of opaque dye injected during the molding process.

12. Do I need to balance these propellers before flying? For standard FPV mini-quad flying, no. They are precision-molded and factory balanced. You only need to manually balance props for highly sensitive, professional cinematic rigs.

13. What is the hub thickness? The central hub is 7.1mm thick. Ensure your motor shafts are tall enough to accommodate this hub plus the nylon insert of your M5 locknut.

14. What happens if I install a propeller upside down? The drone will likely not take off. If it does, it will fly terribly, sound incredibly loud, and draw massive amounts of current because the airfoil shape will be pushing air inefficiently. Always ensure the text/numbers stamped on the prop are facing the sky.

15. Can I bend a crashed prop back into shape? Yes! Polycarbonate is very forgiving. If you crash and bend a blade (without tearing or creasing the plastic), you can often carefully bend it back and fly home. However, it should be replaced before your next serious flight to prevent mid-air failure.

16. Why choose 3 blades instead of 2? Tri-blade (3-blade) propellers offer more surface area, which provides significantly better "grip" in the air, resulting in tighter cornering and smoother freestyle control compared to 2-blade props, which are usually reserved for pure top-speed drag racing.

17. Do these props come with mounting nuts? No. Propellers are considered consumable items. You must use the M5 locknuts that were included with your brushless motors.

18. Will these make my drone faster? If you are upgrading from a low pitch (e.g., 5030) to this 5042 pitch, you will notice a significant increase in top speed and acceleration.

19. How do I know when it's time to throw a prop away? You should discard a propeller if it has severe deep chips on the leading edge, if the blade has a white stress-crease line from being bent, or if the drone starts vibrating violently (jello in the video feed) during flight.

20. Can I use these on a fixed-wing RC airplane? While technically possible if the motor has a 5mm shaft, tri-blades are highly inefficient for standard forward-flight RC airplanes. They are heavily optimized for the static thrust and dynamic maneuvering of multirotors.
