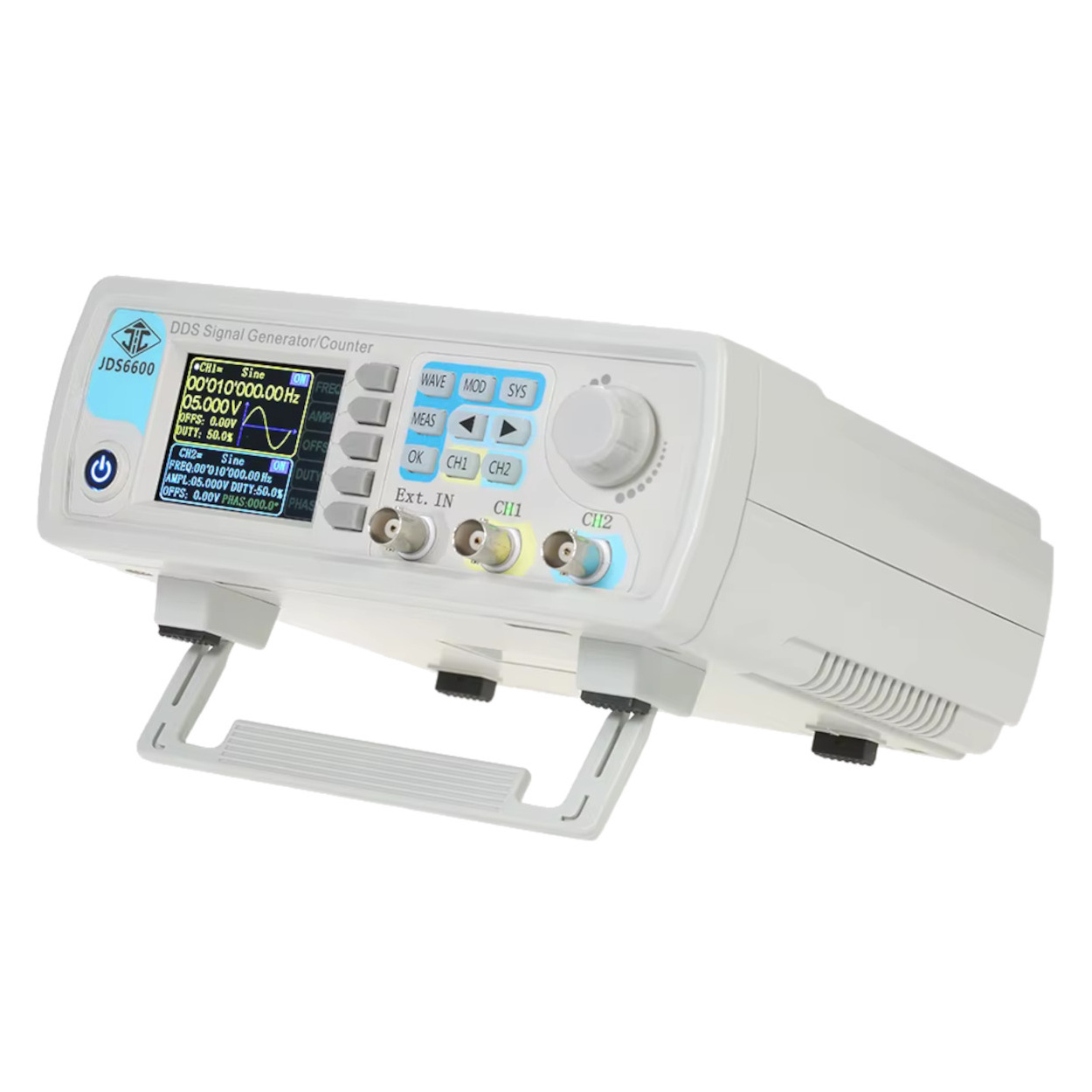

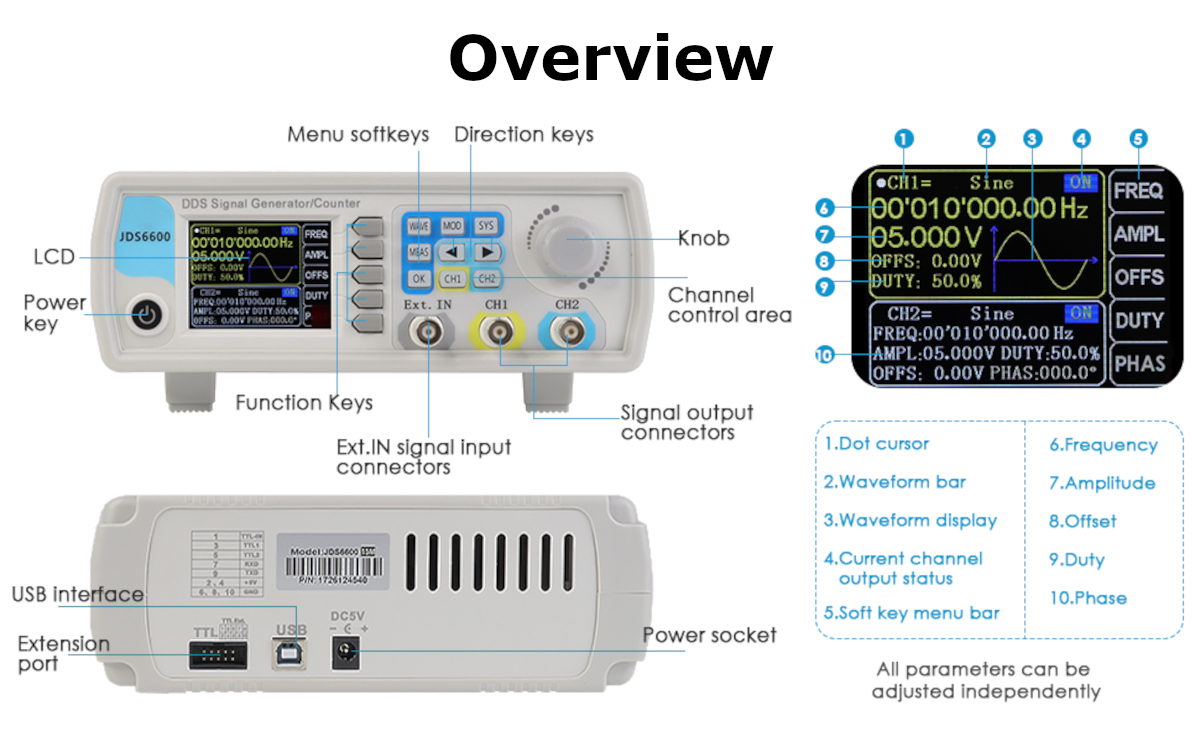

ProMax JDS6600 2-CH DDS Arbitrary Signal Waveform Generator Pulse Counter Frequency Meter USB TTL serial interface 60MHz

Features:

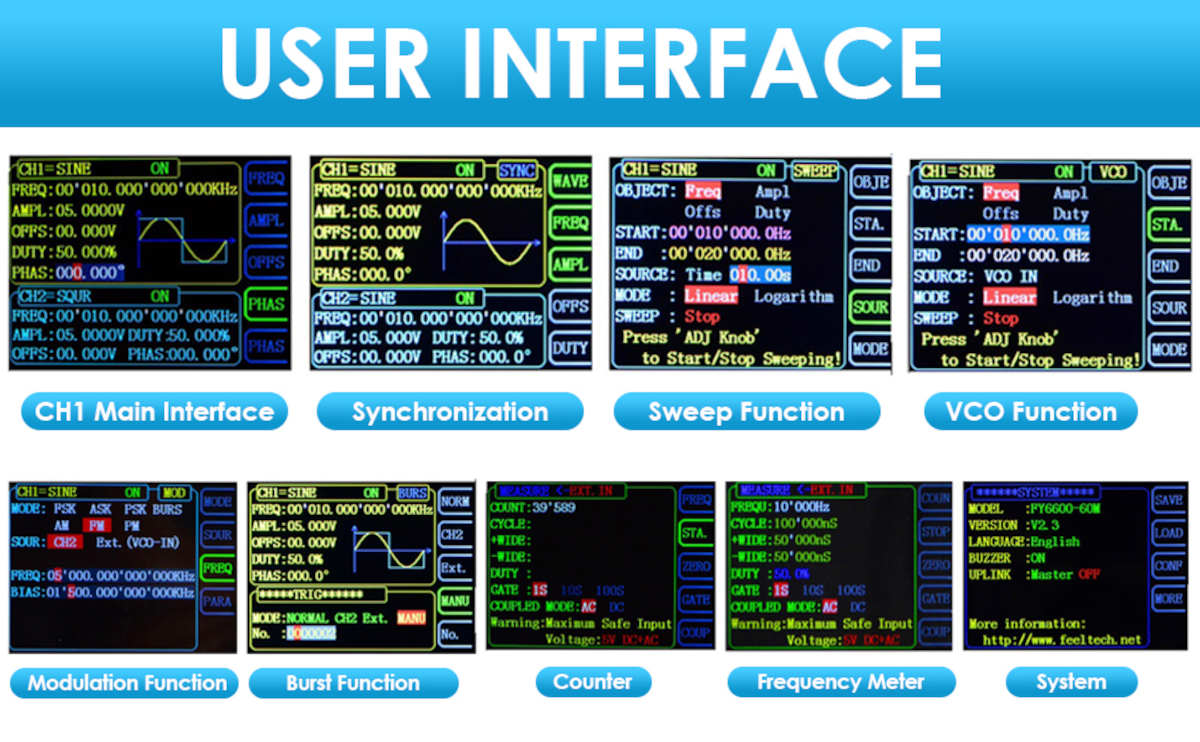

• Dual-channel multi-functional signal generator
• Host computer software to draw arbitrary waveforms and control the instrument
• With TTL level mode serial interface for user secondary development
• High precision and High performance.
• The frequency range of 15-60 MHz, provides a broad spectrum for users to generate a wide variety of signals, including low-frequency and high-frequency signals.
• Frequency accuracy of 20ppm and a frequency stability of 1ppm/3h
• Stable signal with a low level of distortion.
• Generate multiple waveforms such as sine/triangle/square/sawtooth/pulse wave, white noise, and arbitrary.
• It can store 100 groups of instrument state parameters set by the user and can be recalled and reproduced

Applications:

• Generic R&D, Testing, Debugging, Analog Signal Monitoring, Waveform
• Monitoring, etc
• Suitable for debugging noise, signal frequencies, wavelengths, duty
• cycles, power supplies, etc
• Electronic DIY Applications
• Equipment debug
• Scientific research
• Product development

Package Includes:

• 1 x JDS6600 Dual-channel Generator

• 1 x Power Adapter

• 1 x USB Cable

• 2 x Connecting Cables

• 1 x User Manual

• 1 x CD

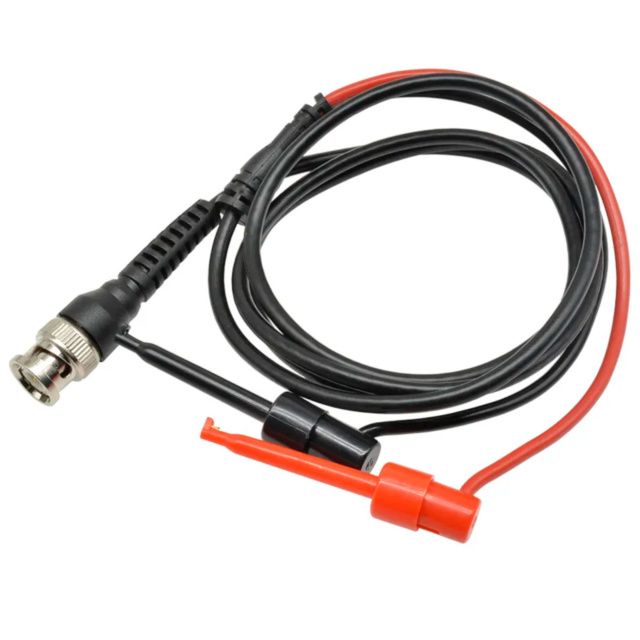

• 1 x BNC Cable


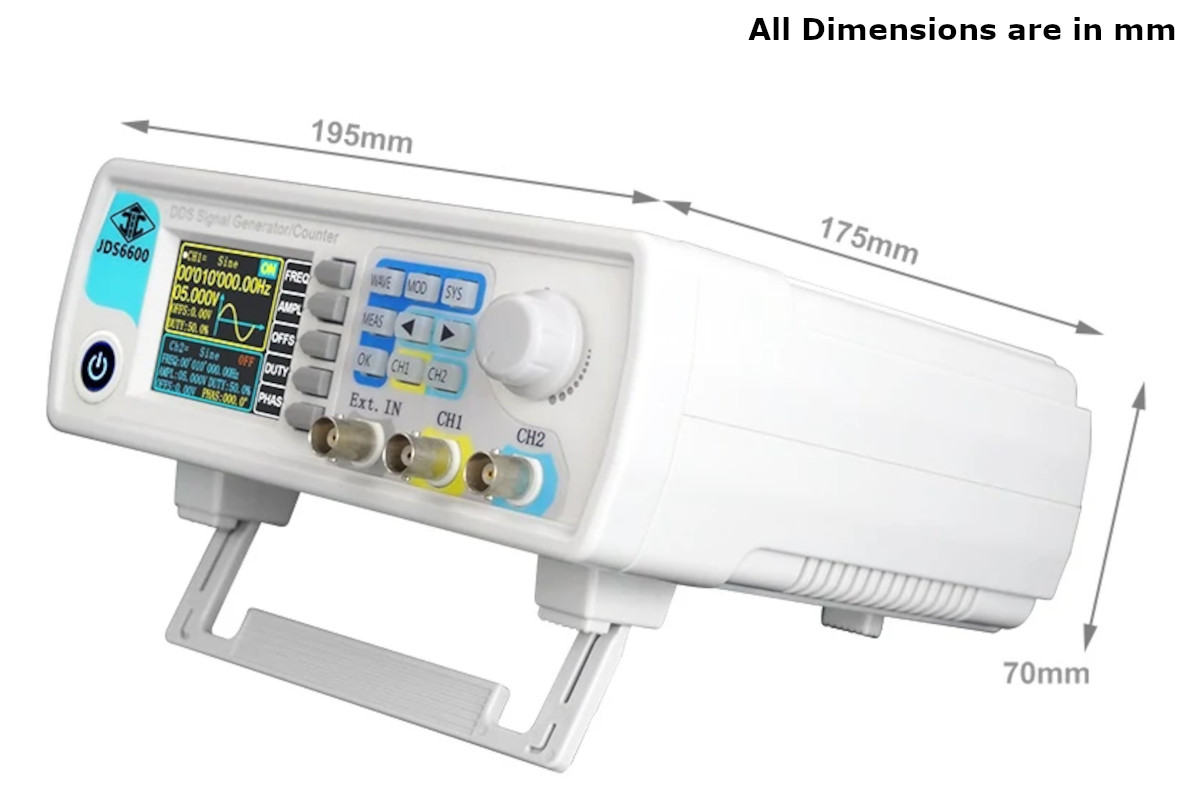

• Specifications:
• Product: DDS Arbitrary Signal Waveform Generator
• Display Type and size: 2.4" TFT 320*240 color LCD
• No of Channels: CH1 and CH2
• Power supply: DC5V±0.5V
• Interface:

  • Interface mode: USB to serial interface
  • Extension interface: With TTL level mode serial interface for user secondary

    development



  • Communication speed: Adopt standard 115200bps



  • Protocol: Using the command line, the protocol is made public



• Memory Store and Load:

  • Quantity:100

  • Position:00 to 99 (00 memory location parameter is loaded by default as power on)

  • Arbitrary wave: Quantity: 1 to 60 total 60 groups (15 groups by default as power on)



• Frequency Characteristics:

  • Sine wave frequency range:0~60MHz

  • Square and Triangle wave frequency range:0-25MHz

  • Pulse/TTL digital/Arbitrary wave frequency range:0~6MHz

  • Pulse width adjustment range:25nS~4000S

  • Minimum frequency resolution:0.01uHz（0.00000001Hz）

  • Frequency accuracy:±20ppm

  • Frequency stability:±1ppm/3hours



• Waveform characteristics:

  • Wavelength: 2048 points

  • Sampling rate: 266MSa/s

  • Vertical resolution: 14-bits

  • Output impedance :50Ω±10% (typical)



• TTL/CMOS output:

  • Low level:<0.3V

  • High level:1V~10V

  • Level rise/fall time:≤20ns



• External measurement function:

• Frequency meter

  • Measurement range:1Hz~100MHz

  • Accuracy: Gate time 0.01S~10s continuous adjustment



• Counter function:

  • Counting range: 0-4294967295

  • Coupling method: DC and AC coupling methods

  • Counting method: Manually



• Input signal voltage range: 2Vpp~20Vpp

• Pulse width measurement: 0.01us resolution,  measure up to 20s

• Period measurement:0.01us resolution, measure up to 20s
