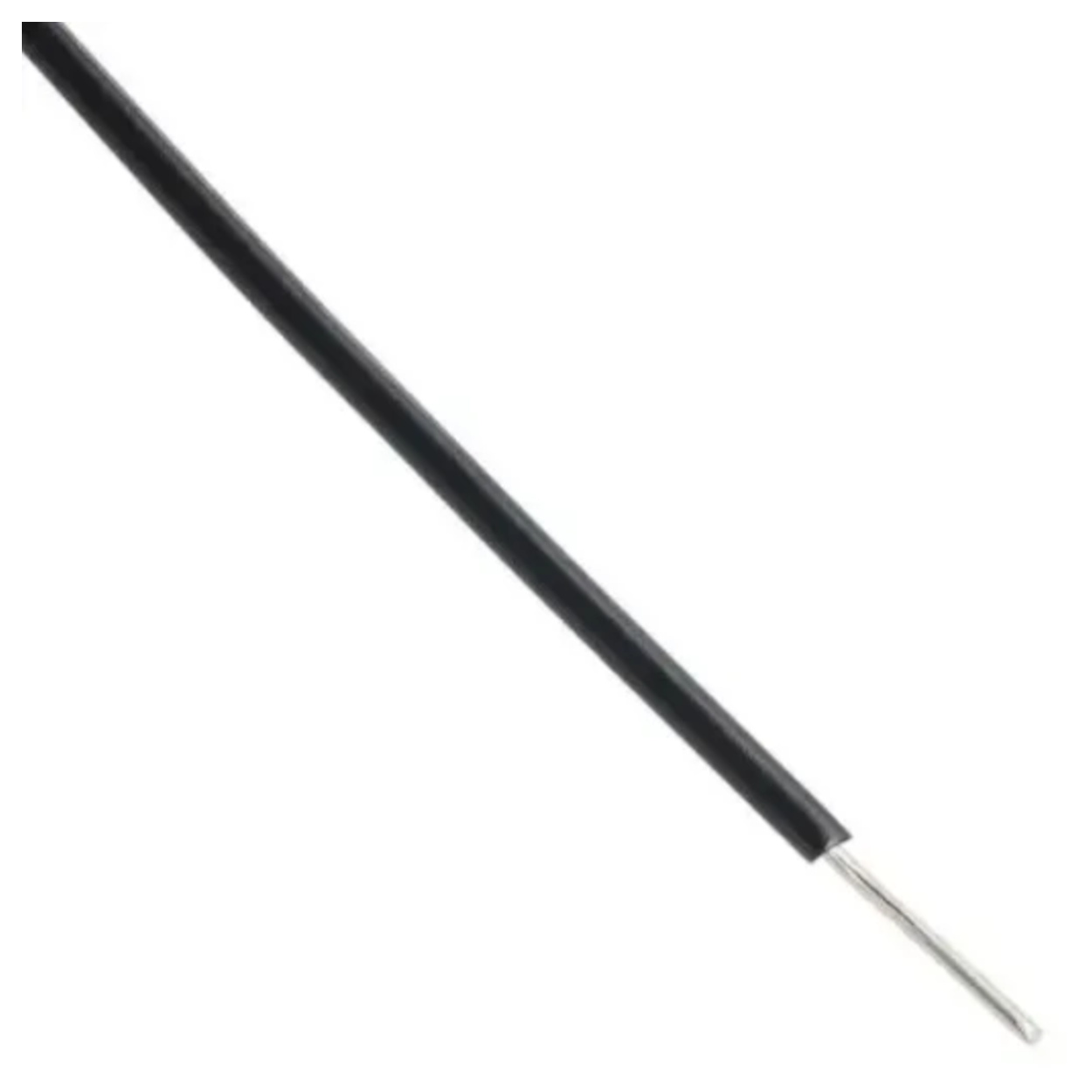

Single Strand Solid Core Hookup Wire - Black 26 AWG

Specifications:

• Gauge: 26 AWG (American Wire Gauge)
• Type: Single Strand / Solid Core
• Core Material: High-Purity Tinned Copper (Easier soldering)
• Insulation: PVC
• Color: Black
• Outside Diameter: ~0.9mm to 1.0mm
• Voltage Rating: Up to 300V
• Current Rating: ~1.0A to 2.0A

Key Applications & Projects

• GND Rail Wiring: Create a solid, continuous ground plane across breadboards or perf-boards.
• Custom Jumper Cables: Cut to the exact length you need to eliminate excess wire loops.
• Control Panel Logic: Wiring common grounds for arrays of switches, buttons, and LEDs.
• PCB Repair/Bodge Wires: Solid enough to jump traces and stay secure with a single drop of solder.

Project Evolution

• Past Projects: If you've been using pre-made multi-strand jumpers, you know the frustration of tips breaking off inside your breadboard.
• Feature Upgrade: Moving to solid-core black wire allows you to "stitch" ground connections across your board with precision, creating a stable common reference point for all your sensors.
• Effort Level: Beginner. A simple wire stripper and a pair of needle-nose pliers are all you need to transform a messy prototype into a professional-grade circuit.

Virtual Technician & Wiring

• Safety Warning: In DC circuits, Black is almost always Ground (GND) / Negative (-). Mixing this with Red (VCC) can lead to reverse polarity damage.
• Tip: When stripping, leave exactly 6mm of exposed copper for the perfect fit into breadboard sockets.

Package Includes:

1 X Single Strand Solid Core Hookup Wire - Black 26 AWG

Frequently Asked Questions (FAQ)

1. Why use Black wire for Ground?
   It is the universal electronics convention. Using it correctly prevents catastrophic wiring errors.

2. Is this wire easier to solder than stranded wire?
   Yes. Since it is a single strand, there are no frayed ends to manage.

3. Does it fit into Arduino female headers?
   Perfectly. It provides a much firmer grip than stranded wire.

4. Is the copper inside tinned?
   Yes, the tin-plating prevents the copper from oxidizing and makes soldering effortless.

5. Can I use this for 12V signals?
   Yes, it is rated for up to 300V.

6. Will the insulation melt during soldering?
   It is heat-resistant, but avoid heating for more than 3-5 seconds to be safe.

7. Is it stiff enough to hold its shape?
   Yes, it is "formable" and will stay in the position you bend it.

8. What is the maximum current?
   For continuous 5V use, we recommend staying under 1.5A.

9. How do I avoid "spaghetti" wiring?
   Cut the wire to the exact length needed and bend it at 90-degree angles to hug the board.

10. Can I use this for I2C data?
    Yes, though usually black is reserved for GND to avoid confusion.

11. Is this wire RoHS compliant?
    Yes, it is lead-free.

12. Can I twist this with the Red wire?
    Yes, twisted pairs help reduce noise in power lines.

13. Is the insulation waterproof?
    The PVC is water-resistant, but use heat-shrink for wet environments.

14. What tool should I use to cut it?
    Any standard electronics side cutter.

15. Does it work with push-in connectors?
    Yes, solid core is the best choice for push-in terminals.

16. Is 26 AWG thicker than 30 AWG?
    Yes, the smaller the AWG number, the thicker the wire.

17. Can I use this for high-speed USB data?
    No, USB requires specialized shielded cables.

18. Is this wire flame retardant?
    Yes, it carries a standard VW-1 flame rating.

19. Can I use this for Raspberry Pi GPIO ground?
    Absolutely, it is highly recommended.

20. Is the price for 1 meter?
    Yes, this SKU is sold per meter.
