Industrial Nylon Pull Handle For Aluminium Profile- 90mm Hole Spacing (Black Plastic)

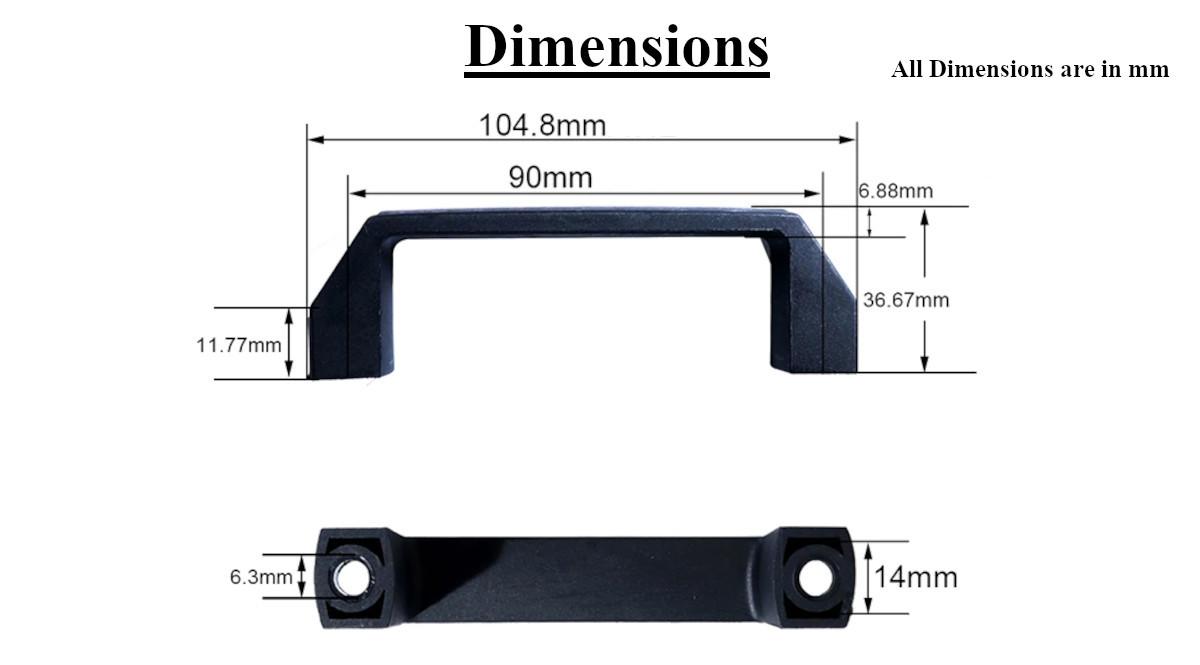

Specifications

• Material: Reinforced Nylon Plastic (Black)

• Hole Spacing (Centre-to-Centre): 90mm

• Total Length: Approx. 105mm - 110mm

• Mounting Style: Front Mount (Through Hole)

• Mounting Hole Diameter: Fits M5 or M6 Screws (Check dimensions)

• Colour: Matte Black

• Load Rating: Suitable for lifting loads up to ~20-30kg (depending on screw strength)

Key Applications

• 3D Printer Enclosures: Perfect for adding lifting handles to custom acrylic or wood enclosures (e.g., Lack Enclosure).

• Industrial Machinery: Door pulls for CNC mills, control cabinets, and server racks.

• Portable Equipment: Carry handles for test equipment, toolboxes, or flight cases.

• Workshop Furniture: Drawer pulls for heavy-duty workbenches.

Virtual Technician: Installation Tips ⚠️

• Measuring: The "90mm" specification refers to the distance between the centres of the two mounting holes. Always measure your existing holes before buying to ensure a match.

• Screw Selection: The holes are recessed to hide the screw head. We recommend using Black Oxide Socket Head Cap Screws for a flush, professional look that matches the handle.

• Do Not Overtighten: While nylon is strong, crushing it with excessive torque can crack the mounting ears. Tighten until snug.

Accessories

• Included:

  • 1 x Nylon Pull Handle (90mm)

  • (Screws are typically NOT included - please use screws appropriate for your mounting surface)

• Recommended (Sold Separately):

  • M5/M6 Socket Head Cap Screws

  • T-Nuts (if mounting to Aluminium Extrusion)

Frequently Asked Questions (FAQ)

1. What is the distance between holes?

   • Exactly 90mm from the centre of one hole to the centre of the other.

2. Does it come with screws?

   • No, screws are not included because the required length depends on your panel thickness.

3. What size screw fits?

   • Typically designed for M5 or M6 screws. The recessed hole allows the head to sit flush.

4. Is it metal or plastic?

   • It is made of Reinforced Nylon (Plastic). It feels rigid and strong, not flimsy.

5. Can I use it to lift a heavy box?

   • Yes, nylon handles are very strong. It can easily support 20-30kg if bolted securely.

6. Will it rust outdoors?

   • No, nylon is plastic and will never rust, making it great for marine or outdoor use.

7. Is the finish glossy or matte?

   • It has a standard industrial Matte Black texture.

8. Can I mount it to 2020 aluminum profile?

   • Yes! 90mm spacing might not align perfectly with profile slots, so you may need to use T-nuts and position them carefully.

9. How tall is the handle?

   • The clearance height is typically around 30-40mm, enough for a gloved hand to grip it.

10. Is it heat resistant?

    • Yes, nylon withstands temperatures up to ~100°C, so it's safe for 3D printer hoods or machine doors.

11. Can I drill the holes larger?

    • Yes, nylon is easy to drill if you need to widen the holes for a larger bolt.

12. Is it soft to the touch?

    • It is hard plastic, but the edges are rounded for comfort.

13. Can I use glue to mount it?

    • No. For a load-bearing handle, always use screws. Glue will peel off under stress.

14. What is the total length?

    • The overall length is slightly longer than the hole spacing, usually about 110mm.

15. Is it UV resistant?

    • Black nylon generally has good UV resistance, but prolonged direct sun exposure over years may fade it slightly.

16. Does it fold down?

    • No, this is a Fixed rigid handle.

17. Can I use countersunk screws?

    • No, the holes are flat-bottomed (counterbored), not tapered. Use Pan Head or Socket Head screws.

18. Is it widely used?

    • Yes, this "bridge handle" design is a universal industry standard.

19. Can I paint it?

    • Plastic is hard to paint without primer, but it comes in black which fits most equipment.

20. Is it hollow?

    • It is usually solid or thick-walled injection molded, making it very robust.
