Mini Fast Connector ProMax PMFCS061M2 Series Cable Terminal Block -6 pole

ProMax Push-in Wire Connector Terminal Block makes fast, easy, and reliable electrical connections. These connectors are designed for making wire-to-wire connections in testing, prototyping, and also in final production wiring. Use the spring-loaded handle to make wire-to-wire connections without the need for specialized tools like soldering irons, crimps, or screwdrivers. Wiring can be made and changed on the go in the field in seconds. The connectors are available in multiple sizes, configurations, mounting styles, and color handles. Being compact in size the push-in wire connectors connector fits perfectly in tight spaces and can be used in all kinds of junction boxes and control panels.

Outer bodies of Terminal Blocks are made up of thermoplastic material with excellent electrical insulation and mechanical strength. This connector has high insulation between adjacent contacts, low contact resistance between wire and contact, and high flammability resistance. The conductors are manufactured for high current ratings.

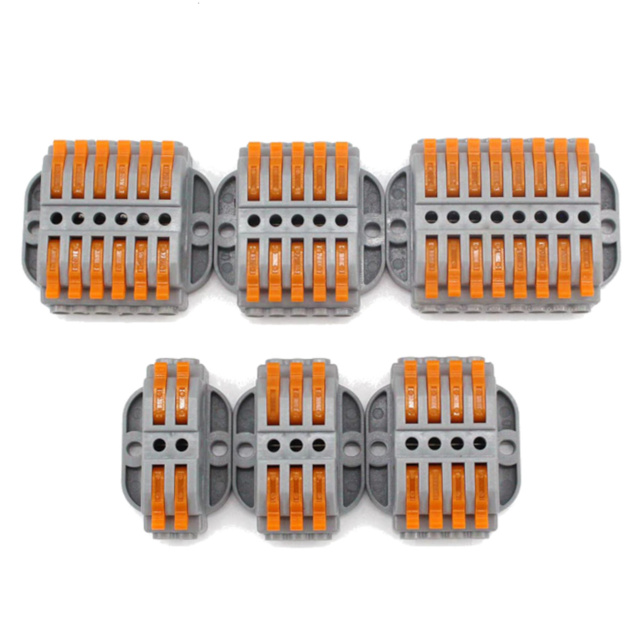

The Push-in Wire Connector terminal block is available in a variety of models based on - No poles, Splitting Arrangements, Mounting Style, Handle Colour, Shapes, etc. You can use this document to identify the required model no before ordering.

Note: This connector is available in different configurations and sizes, check out the website to view all available models.

Features:

• Brand: ProMax
• Mount Type: Surface mount
• 1:1 -Conductor Terminal Block
• Max Rated voltage: 450V
• Max current: 32A (ensures connectors can be used for both power and signal wiring)
• Rated surge voltage: 4KV
• Suitable for Fine-stranded wires: 0.5-4mm²
• Connector Material: Flame retardant PC. High-grade Insulative Nylon Material
• Strong Spring Locking Lever
• Nickel Plated Metal Contact Inside
• Max. Continuous Service Temperature 85°C
• Suitable for wire extending, wire splitting, generic cabling, and wiring
• Combines push-in connector with lock/unlock spring mechanism
• For fine-stranded conductors at lighting input
• Very flexible application - suitable for multiple wiring and cabling scenarios
• Simple Tool Free Operation - unlock by pulling open the handle, pushing in the wires, and pressing lock the handle
• Tool-free application for easy, time-saving, safe connection. Useful for quick wiring without the need for soldering, screw terminals, or other specialized tools
• The only connector option for wiring when working in tight spaces
• Working temperature: -40℃-105℃

Applications:

• These connectors can be used for wire extensions, wire splitting, generic cabling
• Suitable for Power Distribution, Load Splitting & Battery Load Distribution Connections
• Widely used in control panel boards for wiring distribution
• Suitable for Standard Feedthrough (1:1) & Multiple Connection (1:N) connections
• Perfect for Test, Prototyping, and Experimentation
• Also suitable for production as the spring-loaded contacts offer high strength and reliability
