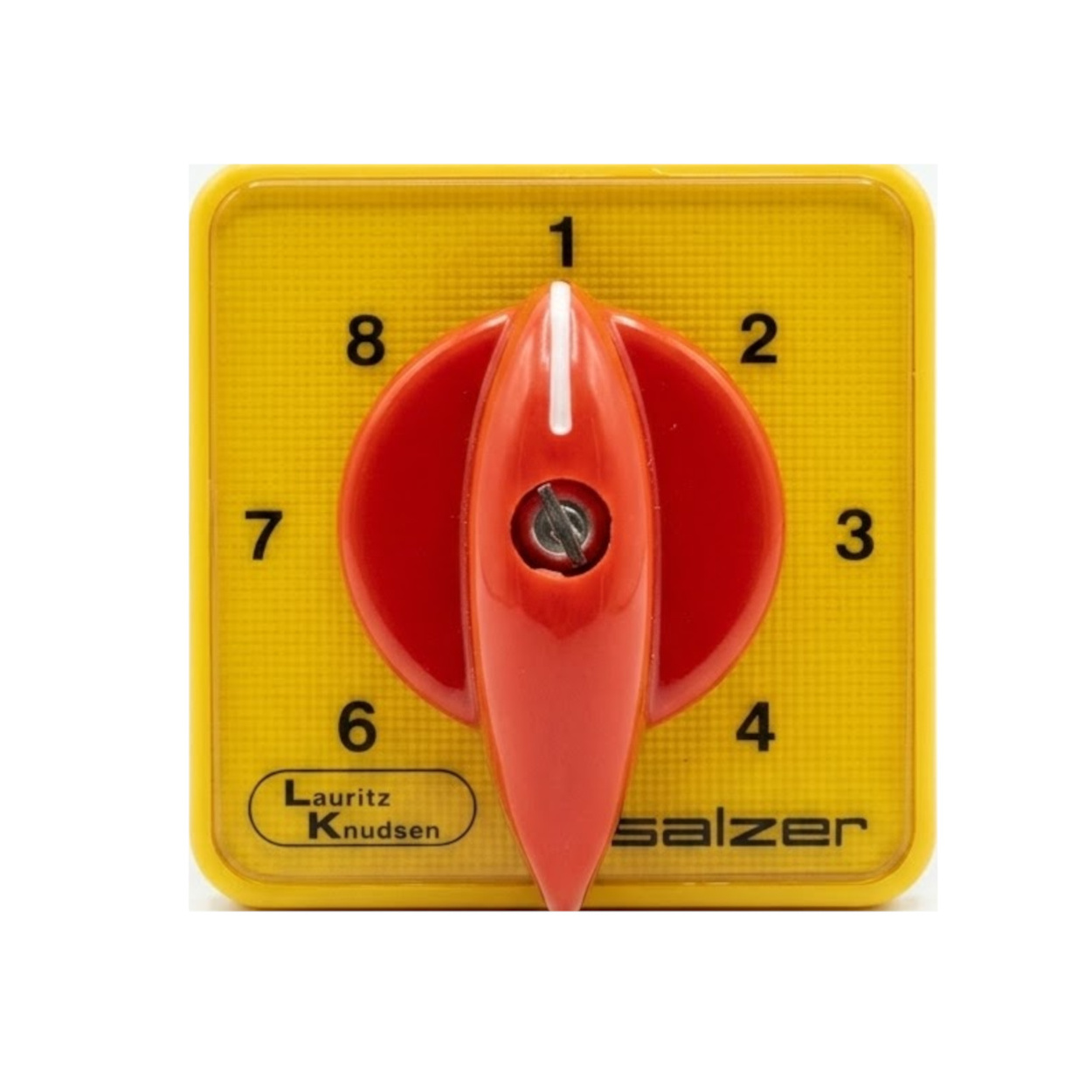

Cam Operated Rotary Switch 6A S6 1-Pole, Mounting B13 No OFF

Specifications

• Switch Type: Cam Operated Rotary Switch
• Part Number: 61054
• Current Rating: 6A / s6 (Continuous load rating)
• Configuration: 1-Pole
• Mounting Style: B13 Panel Mount
• Switching Logic: "No OFF" (Designed for continuous state transitioning)
• Actuation: Rotary Knob (Manual)
• Termination: Screw Terminals (Suitable for spade/ring crimps)

Applications

• Industrial Control Panels: Reliable phase or state switching for heavy machinery.
• Custom CNC Builds: Main state selection for spindle speeds or coolant routing.
• Power Supply Matrix: Routing 12V/24V DC power to different sub-systems in an automation rig.
• Test Benches: Switching a single measurement line between multiple test points without a break in the circuit.

Unlock New Capabilities

• Past Projects: If you've mastered basic 5V logic routing using tiny slide switches or standard relays.
• The Feature Upgrade: This Salzer switch unlocks the ability to manually route heavy loads (up to 6A) directly, eliminating the need for intermediate contactors in low-to-medium power setups. The cam mechanism provides a satisfying, tactile "clunk" that guarantees the switch has fully transitioned.
• Effort Level: Intermediate. Requires basic understanding of panel mounting, wire stripping, and crimping for safe high-current connections.

Virtual Technician & Wiring Guide

• ⚠️ High Voltage Warning: While this switch can handle high voltages, ensure all AC mains wiring is performed by a qualified technician with proper insulation, heat shrink, and grounding. Always disconnect power before wiring.
• Wiring Setup (1-Pole): Strip your 14-18 AWG wire and attach a standard insulated spade or fork crimp connector.
• Connect your main input power line to the common terminal on the switch body.
• Connect your load wires to the numbered output terminals.
• Secure the terminal screws tightly to prevent high-resistance arcing.

Package Includes:

• 1 x Cam Operated Rotary Switch  6A S6 1-Pole, Mounting B13 No OFF

Frequently Asked Questions (FAQ)

• What is the maximum current rating of this switch?
  The switch is rated for 6A continuous current (s6 rating).
• What does "1-Pole" mean for this rotary switch?
  It means the switch controls a single circuit (one input line) and routes it to different output paths depending on the knob's position.
• Can I use this for 230V AC mains switching?
  Yes, cam switches are traditionally designed for industrial AC applications, provided you stay within the maximum voltage/current ratings specified on the switch body.
• What does "Mounting B13" refer to?
  B13 is a specific mounting standard that defines the screw hole spacing and panel cutout dimensions for the front faceplate.
• Why does this switch say "No OFF" position?
  This specific cam configuration is designed to switch directly between active states (e.g., State 1 to State 2) without resting in a disconnected (OFF) state in between.
• How do I mount this to an electrical panel?
  You need to drill a center hole for the rotary shaft and corresponding pilot holes for the B13 faceplate mounting screws, then secure it from behind the panel.
• Does it come with a knob or handle?
  Yes, it comes with the standard front faceplate and rotary knob mechanism.
• Can I use this to reverse a DC motor?
  A 1-Pole switch cannot natively reverse a DC motor (which requires a 2-Pole DPDT setup). You would need a multi-pole version for direct motor reversing.
• What wire gauge should I use for 6A loads?
  We recommend using at least 18 AWG, though 16 AWG or 14 AWG stranded copper wire is better for safety and lower resistance.
• Is this switch waterproof?
  No, the standard B13 mounting provides dust resistance for the front panel, but the switch body and terminals in the back are exposed.
• How do I terminate the wires on the back?
  The switch uses heavy-duty screw terminals. For best results, crimp insulated fork or ring terminals onto your wires before screwing them down.
• Can it switch 12V/24V DC logic circuits?
  Absolutely. While built for heavy loads, the mechanical contacts will easily route standard 12V or 24V DC signals for microcontrollers or PLCs.
• What is the mechanical lifespan of the cam mechanism?
  Industrial cam switches typically boast a mechanical lifespan of hundreds of thousands of switching cycles.
• Will this fit in a standard DIN rail enclosure?
  No, this is a panel-mount switch. It is meant to be mounted on the flat surface or door of a control cabinet, not clipped onto an internal DIN rail.
• How do I clean or maintain the contacts?
  The contact housing is generally sealed off. If performance drops, industrial switches are usually replaced rather than disassembled for cleaning.
