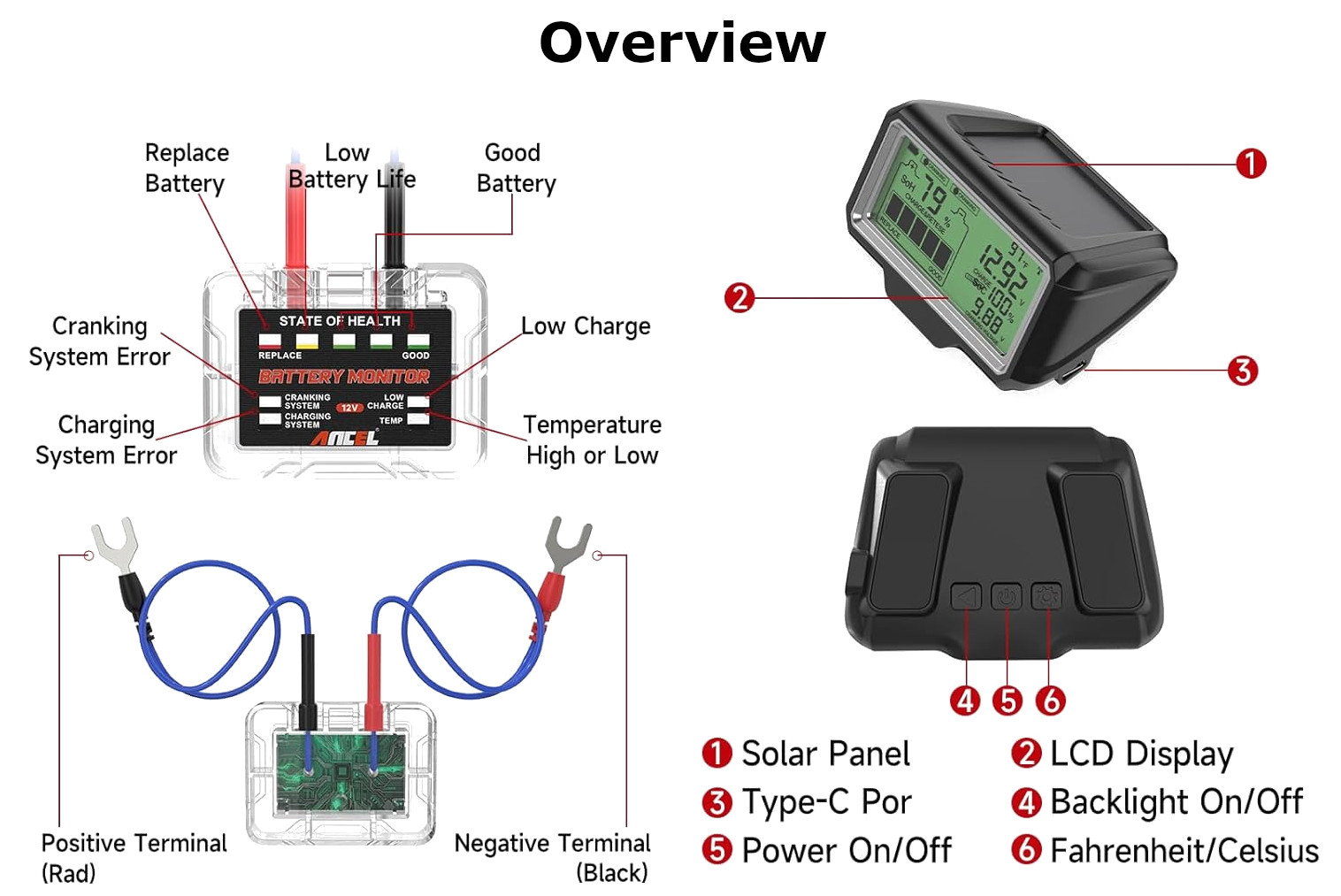

USB Mic for Raspberry Pi Plug and Play Desktop Microphone βΉ269.00 BM200 PRO is a Battery Monitor with a host unit and a wireless display. It provides a real-time display of battery voltage, power, temperature, and health. It also features a Battery start system and charging system monitoring The display has a built-in lithium battery and adopts two modes of power supply Type-C(5V) fast charging and solar panel. The device operates on stable 433MHz wireless transmission technology and features a built-in vibration sensor, fuse, and reverse connection protection. Widely used in Automobiles applications like cars, trucks, etc., and also in battery-operated industrial applications
Note:
Downloads:
Features:
Real-time display of battery health, temperature, power, and voltage.
Automatically battery start and charging system monitoring
Built-in alarm function. An alarm tone will be emitted for abnormal temperature, low battery, low voltage, starting system failure, and charging system failure.
The display is powered by lithium battery and solar panel, with no cables, and no installation required.
Power and charging by solar panels make the device not require frequent charging.
Adopt stable 433MHz wireless transmission technology, real-time monitoring of battery status
Built-in vibration sensor. The device will automatically turn on when the vehicle is slightly moved, and will automatically turn off after a long period of stationary.
Built-in fuse and reverse connection protection.
Applicable to all 12V Lead-Acid batteries
Package Includes:
Specifications:
Product: Battery Monitor
Model: BM200 PRO
Host Input Voltage: DC 6V ~ 25V
Host Power consumption:2.3mA (Average)
Host Radio Frequency:433MHz
Host Range: Up to 8 Meter
Wireless Display: Monochrome LCD with Backlight
Display Charging Input: Solar Panel, Type-C Port (5V)
Display Battery: Lithium Battery (750mAh)
Material: Plastic, ABS
Reverse Connection Protection: Built-in
Short-circuit Protection: Built-in
Applications: Widely used in Automobiles applications, electronic devices, battery-operated industrial application


This video describes the functionality of BM200 Pro Battery Monitor


| Technical Details |
|
|---|
