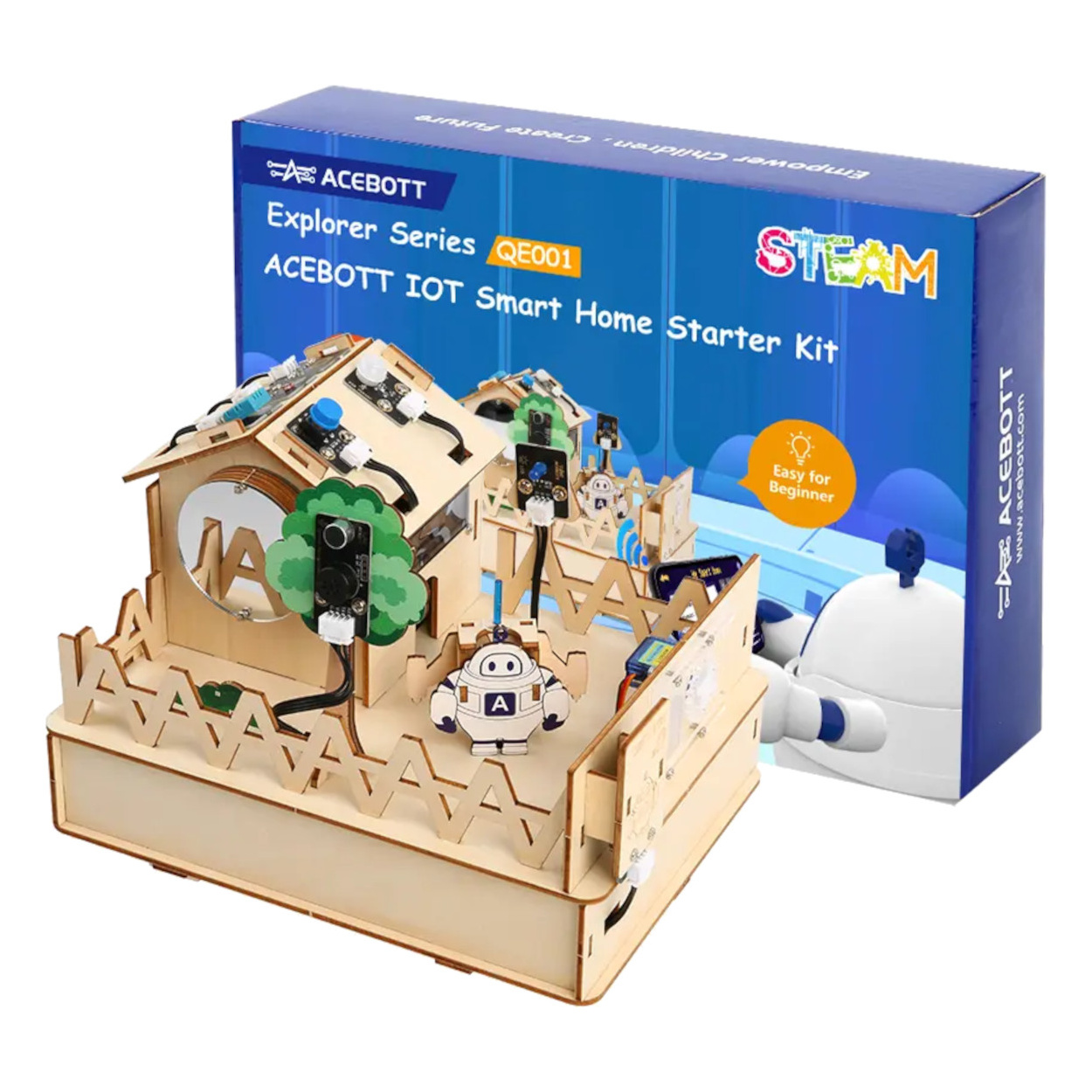

ACEBOTT QE001 Easy-Plug ESP32 Smart Home IoT Starter Kit (Wooden House & App Control)

Specifications

• Core Controller: ESP32 MAX V1.0 (Dual-Core, Wi-Fi + Bluetooth Integrated).

• Expansion Shield: ESP32 Shield V1.0 with dedicated Easy-Plug XH2.54 ports.

• Input Sensors:

  • Speech Recognition V2.0: Offline voice command processing.

  • PIR Motion Sensor: Detects human movement.

  • Raindrop Sensor: Analogue liquid detection.

  • DHT11: Digital Temperature & Humidity monitoring.

  • Light Sensor (LDR): Automatic night-light triggering.

  • RFID Module (RC522): 13.56MHz contactless access control (includes Key tag/card).

  • Button Module: Manual override inputs.

• Output Modules:

  • LCD 1602 (I2C): Real-time status display.

  • SG90 Servo Motors (2x): For Door and Window mechanisms.

  • RGB LED Strip: Mood lighting and status indication.

  • Laser Module: Security tripwire simulation.

  • Active Buzzer: Alarm and notification sounds.

  • Fan Module: Climate control simulation.

• Power: 2x 18650 Battery Holder (Batteries sold separately) or USB-C.

• Material: Eco-friendly, precision laser-cut plywood structure.

Project Evolution

• Prerequisite: If you are comfortable with basic Arduino logic (Loops, If/Else), this kit is the perfect next step.

• The Upgrade: Moving from a standard Arduino Uno to this ESP32 kit unlocks Wireless IoT. You aren't just blinking an LED; you are hosting a web server on a chip.

• Probots™ Tech-Bridge: We know IoT can be tricky. This kit is fully supported by our Bangalore engineering team. We provide verified library links and troubleshooting tips so you don't get stuck on Wi-Fi connection errors.

Virtual Technician & Wiring Guide

• ⚠️ Voltage Warning: The ESP32 is a 3.3V logic device. While the included shield handles power distribution, Probots™ Logic-Safe protocols recommend never connecting 5V sensors from other kits directly to the ESP32 GPIO pins without a logic level converter. Use only the included Easy-Plug modules to stay safe.

• Connection Guide:

  • Port 1-4 (Analogue/Digital): Used for simple sensors like Button, Light, and Rain.

  • I2C Port: Dedicated for the LCD 1602 display (SDA/SCL auto-mapped).

  • Motor Port: High-current headers for the Fan and Servos (prevents resetting the board).

For the Code and Tutorial, download here.

• Code & Instructions

Frequently Asked Questions (FAQ)

• Does this kit include a battery? No, you need to purchase 2x 18650 Li-ion batteries separately.
• Can I program this with Arduino IDE? Yes, the ESP32 is fully compatible with Arduino IDE (C++).
• Is the wooden house difficult to assemble? No, it uses a tab-and-slot design. No glue is strictly required, though a drop of wood glue can make it permanent.
• Does the voice recognition need Wi-Fi? No, the Speech Recognition module is "offline" and processes commands locally on the module itself.
• What app do I use for IoT control? You can use the ACEBOTT app, or standard IoT platforms like Blynk, ESP RainMaker, or a custom Web Server.
• Can I add more sensors? Yes, the shield breaks out unused GPIO pins, allowing you to add standard DuPont-style sensors if needed.
• Is this suitable for a Class 8 student? Yes, it is designed exactly for that age group (12+), bridging the gap between block coding and text coding.
• Does it support Python/MicroPython? Yes, the ESP32 chip supports MicroPython, though the provided tutorials focus on C++/Arduino.
• What is the Wi-Fi range? Standard 2.4GHz Wi-Fi range (approx. 30-50 meters line of sight).
• How do I power the kit? You can power it via the USB-C port or the battery pack.
• Are the easy-plug cables compatible with Grove? They are similar (XH2.54), but pin orders may vary. Stick to the included modules or check pinouts carefully.
• Does it come with a manual? Yes, a digital PDF manual and tutorial series are provided.
• Can I use the RFID to trigger a solenoid lock? Yes, you can replace the servo with a 5V relay module (sold separately) to control a real solenoid lock.
• What if my computer doesn't recognise the board? You likely need the CH340 or CP210x USB driver installed. Check our "Downloads" section.
• Is the fan powerful enough to cool a room? No, it is a small DC hobby fan for educational simulation/demonstration only.
• Can I use a 9V battery instead of 18650s? Not recommended. 9V batteries lack the current (Amps) to drive the servos and Wi-Fi simultaneously.
• Does the rain sensor corrode? It is gold-plated to resist corrosion, but for long-term outdoor use, we recommend a capacitive rain sensor upgrade.
• Can I control it with Alexa/Google Home? Yes, by programming the ESP32 with the appropriate IoT Cloud libraries (e.g., SinricPro).
• What is the "Laser" module for? It projects a dot, often used in security projects to simulate a "tripwire" when aimed at the light sensor.
• Is soldering required? Zero soldering. Everything is plug-and-play.
