Black 2020 V-Slot Mini Gantry Plate Set with 4 POM Pulley Wheels & Hardware

Specifications

• Plate Material: 6061-T5 Aluminum (3mm Thickness)

• Plate Finish: Black Anodized (Scratch Resistant)

• Wheel Material: High-Strength POM (Polyoxymethylene) with Dual Bearings

• Bearing Type: 625ZZ Chrome Steel (Pre-Lubricated)

• Compatibility: 20mm x 20mm V-Slot Aluminum Profiles

• Wheel Quantity: 4 Mini V-Wheels

• Spacers: 2 x 6mm Eccentric Spacers (for tension adjustment) + 2 x 6mm Fixed Spacers

• Total Weight: 110g

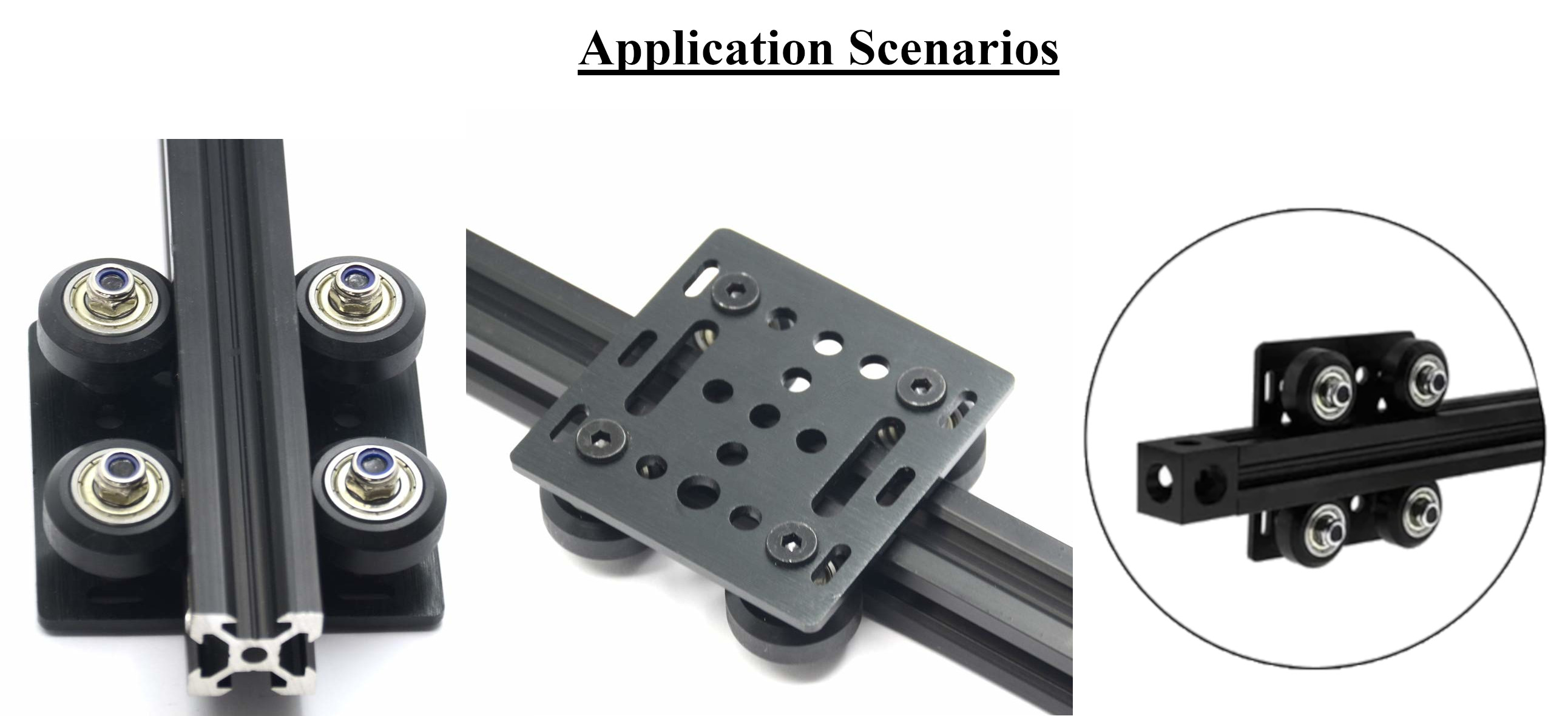

Key Applications & Projects

• Small-Format 3D Printers: The perfect X-axis carriage for compact builds like the Voron V0 or customized Ender clones.

• Laser Engravers: Provides the lightweight, low-inertia movement required for high-speed laser head positioning.

• Camera Sliders: Build your own motorized photography slider for professional-grade b-roll.

• Compact CNC Machines: Use for Z-axis movement where space is limited but rigidity is required.

Unlock New Capabilities (Project Evolution)

• Past Projects: If you've been using cheap plastic rollers or basic drawer slides for linear motion, you know the frustration of "slop" and misalignment.

• Feature Upgrade: This gantry set introduces Eccentric Spacers, which unlock the ability to "tune" your carriage. You can tighten the wheels against the rail to eliminate all play without stalling the motor.

• Effort Level: Intermediate. Requires assembly of wheels onto the plate and fine-tuning the eccentric nuts for optimal tension.

Virtual Technician & Wiring

• Probots™ Secure-Transit  Packaging: We know that even a tiny nick on the POM wheel surface can ruin a 3D print. That's why every set is shipped via Probots™ Secure-Transit , with wheels individually bagged to prevent surface damage during delivery.

• Tuning Tip: When mounting, turn the eccentric spacers until the wheels just touch the profile. You should be able to spin a wheel with your finger with some resistance, but it shouldn't "slip" freely.

Included Accessories

• 1 x 20 mm Mini Gantry Plate (Black)

• 4 x POM Mini V-Wheels (with 625ZZ bearings)

• 2 x Eccentric Spacers (6mm)

• 2 x Fixed Aluminium Spacers (6mm)

• 4 x M5 Low-Profile Screws

• 4 x M5 Nylon Lock Nuts

Frequently Asked Questions (FAQ)

1. Does this work with standard T-Slot profiles? No, pulley wheels require the angled "V" edge of a V-Slot profile to track correctly.

2. How do I adjust the tension? Use a wrench on the two eccentric (hex-shaped) spacers to move the wheels closer to or further from the rail.

3. What size profile is this for? This plate is specifically designed for 2020 (20mm x 20mm) V-Slot profiles.

4. Are the bearings replaceable? Yes, each wheel uses two standard 625ZZ bearings.

5. Can I use this for a heavy CNC spindle? This is a "Mini" set suited for lighter loads like laser heads or 3D printer extruders. For heavy spindles, use our 2040 Large Gantry Plate.

6. Will the POM wheels wear down over time? POM is highly wear-resistant, but they will eventually wear. Keeping your rails clean extends their life significantly.

7. Does the plate come pre-assembled? No, it comes as a kit to ensure you can properly align and tension the wheels during installation.

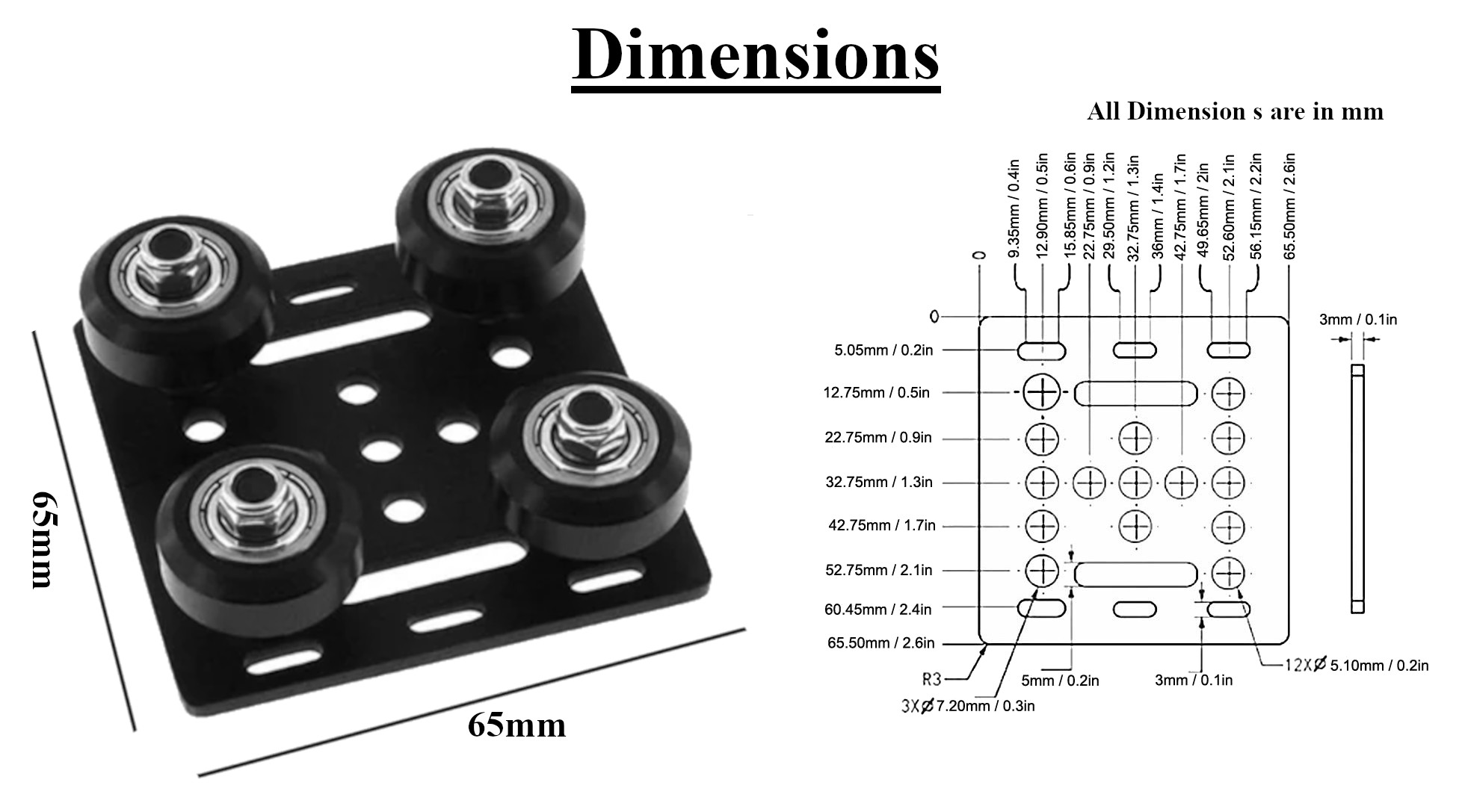

8. What is the plate thickness? The aluminum plate is 3mm thick.

9. Can I mount a NEMA 17 motor directly to this? This plate does not have motor mounting holes; it is a carriage plate. See our "Motor Mount Plates" for that purpose.

10. Do I need special tools for assembly? You will need a 3mm hex key and an 8mm wrench for the eccentric nuts.

11. How much weight can this carriage support? It is rated for vertical loads up to 5kg when properly tensioned.

12. Is the aluminum plate bendable? No, 6061-T5 aluminum is very rigid and designed to maintain flatness.

13. Are the screws included? Yes, the kit includes the necessary M5 low-profile screws and lock nuts.

14. What is the outer diameter of the wheels? These are "Mini" wheels with an outer diameter of approximately 15mm.

15. Can I add more wheels to the plate? The plate has a fixed 4-hole pattern for this specific wheel configuration.

16. Is it compatible with 2040 V-Slot? It will fit on the 20mm face of a 2040 rail, but will not span the full 40mm width.

17. Does it come in other colors? Currently, we stock the premium Black Anodized version.

18. Are these "Solid" or "V" wheels? These are standard V-shaped wheels designed to sit inside the V-Slot groove.

19. Can I use these for a vertical axis (Z-axis)? Yes, they are commonly used for Z-axis carriages in DIY 3D printers.

20. Is there any maintenance required? Periodically wipe the V-grooves of your profile and the wheels with a dry cloth to remove dust.
