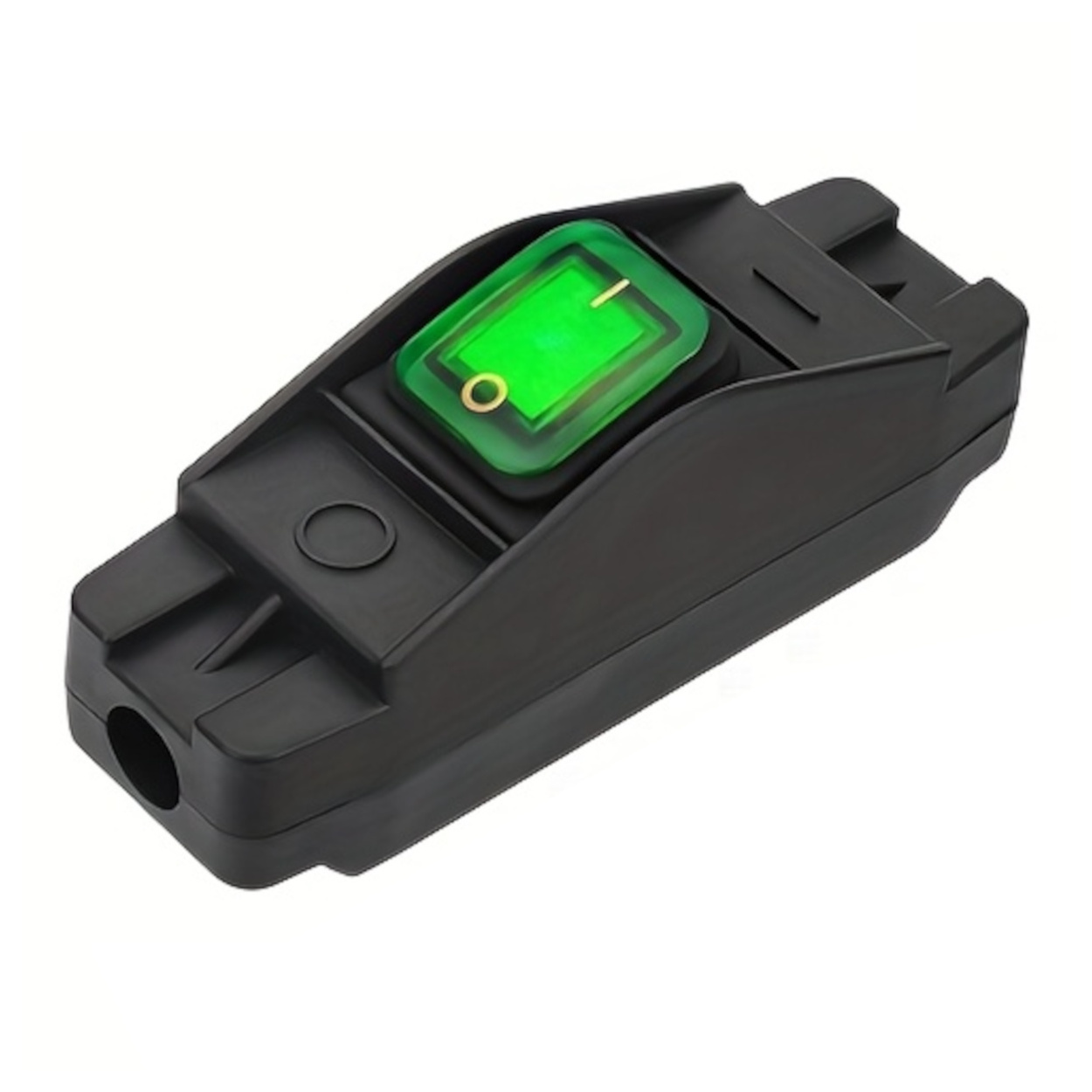

Industrial-Grade Inline Cord Switch IP65 Waterproof 16A 250V with Green LED Indicator

Quick Introduction: Stop relying on flimsy indoor lamp switches for your heavy-duty equipment. The Industrial-Grade IP65 Inline Cord Switch is engineered for the toughest environments, from dusty woodworking shops to damp outdoor garden setups. Unlike standard switches that fail under load or moisture, this unit handles up to 16 Amps at 250V, making it the safest choice for controlling power tools, pumps, outdoor lighting, and industrial machinery.

Detailed Specifications:

• Current Rating: 16A Max (AC)

• Voltage Rating: 250V Max (AC)

• Waterproof Rating: IP65 (Dust-tight & protected against water jets)

• Switch Type: Double Pole Single Throw (DPST) - Cuts both Live and Neutral for maximum safety.

• Indicator: Built-in Green LED (Illuminates when ON).

• Material: Impact-resistant ABS Housing with Metal Internal Contacts.

• Cable Compatibility: Fits round cables Ø 7mm ~ 10.5mm.

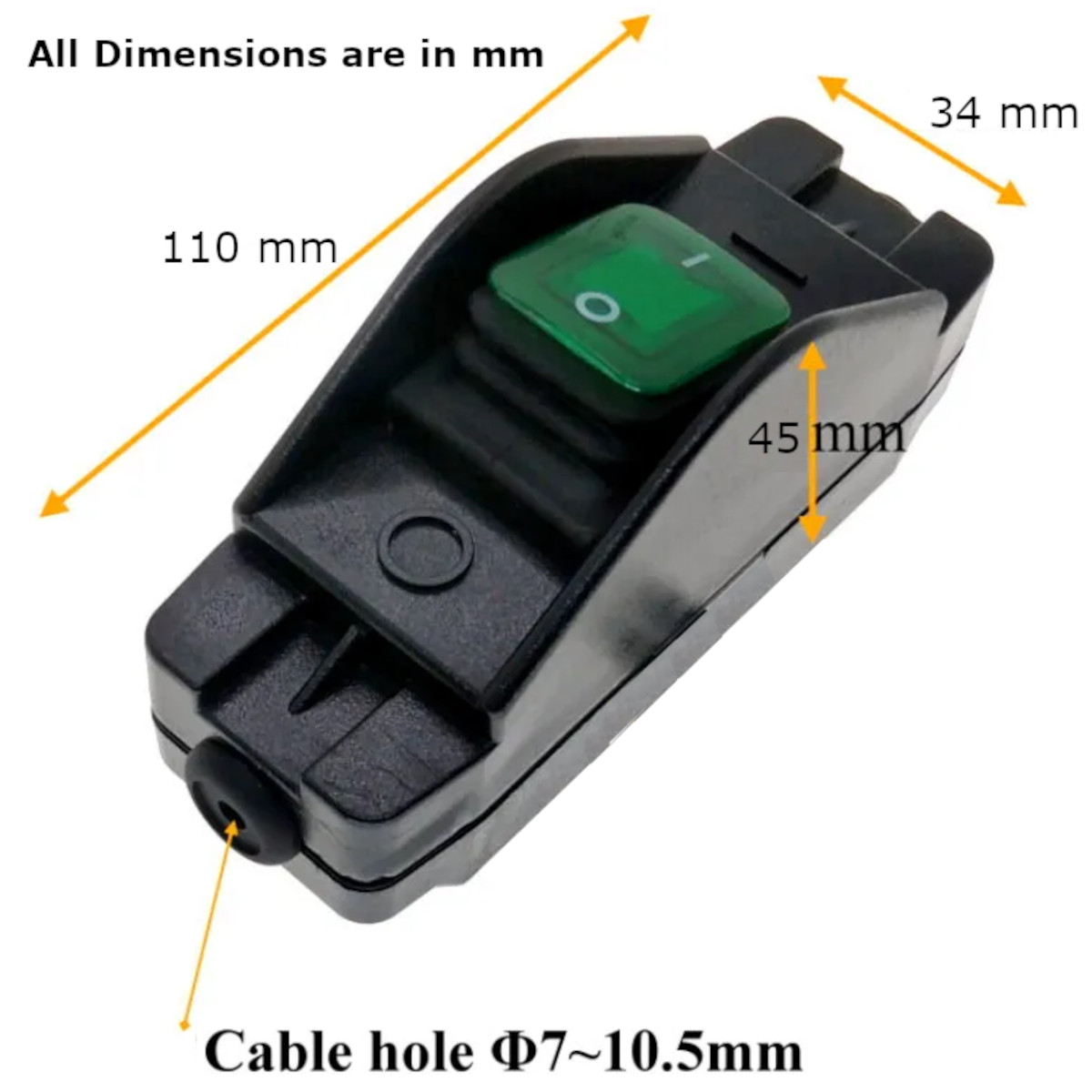

• Dimensions: 110mm (L) x 45mm (H) x 34mm (W).

Quality Advantage & Differentiation: Why choose this "Industrial-Grade" switch?

1. True Isolation: It uses a DPST (Double Pole) mechanism, meaning it physically disconnects both the Live and Neutral wires when switched off. This is a critical safety feature for outdoor and wet-environment equipment that cheaper single-pole switches lack.

2. Sealed Durability: The housing features a silicone gasket seal and screw-down compression glands on both ends, achieving a true IP65 rating to keep out sawdust, rain, and moisture.

3. Visual Feedback: The integrated Green LED provides instant visual confirmation of power status, essential for noisy environments where you can't hear if a machine is running.

Key Applications & Usage:

• Outdoor Equipment: Safely switch pond pumps, fountain motors, and patio heaters without fear of rain damage.

• Workshop Tools: Add a convenient master switch to bench grinders, drill presses, or shop vacs.

• Extension Cords: Build custom heavy-duty extension cables with a dedicated ON/OFF toggle for remote control of appliances.

What's Included & Required:

• Included: 1x IP65 Inline Switch Assembly (Housing, Rocker Switch, Cable Seals, Screws).

• Required: 2-core or 3-core round electrical cable (Ø 7mm-10.5mm), Screwdriver, Wire Strippers.

The "Virtual Technician" Support Panel

• ⚠️ CRITICAL SAFETY WARNING:

  • Cable Seal Integrity: To maintain the IP65 rating, you MUST use round cable with a diameter between 7mm and 10.5mm. Using flat cable or wire that is too thin will prevent the glands from sealing, allowing water to enter and potentially causing a short circuit.

  • Load Limit: Do not exceed 16A load. For continuous high-load applications (like heaters), ensure your wire gauge is sufficient (typically 1.5mm² or 2.5mm²) to prevent overheating at the terminals.

• Pinout Reference (MANDATORY):

  • Input Side (Supply):

    • Pin 1: Live In (L - from Wall/Plug)

    • Pin 2: Neutral In (N - from Wall/Plug)

  • Output Side (Load):

    • Pin 3: Live Out (L - to Device)

    • Pin 4: Neutral Out (N - to Device)

  • Note: The switch breaks both connections. Ensure Earth/Ground wires are passed through continuously using the provided internal earth terminal block (if present) or joined securely with a wago/crimp if no earth terminal is on the switch body.

• Troubleshooting: LED not lighting up? The LED is powered by the load side of the switch. If wired backwards (Input connected to Output pins), the LED might stay on permanently or not light up at all. Verify your Input vs. Output wiring orientation.
