Hiwonder miniAuto AI Vision Robot Base with 360° Mecanum Wheels & Arduino UNO R3 Controller

Specifications

• Controller: Arduino UNO R3
• Drive Type: 4WD Omnidirectional Mecanum Drive
• Chassis Material: High-Strength Aluminum Alloy
• Motors: 4× TT DC Geared Motors
• Operating Voltage: 2 x 3.7V 18650 battery (1800mAh)
• Wheel Type: 60mm Mecanum Wheels
• Dimensions (L × W × H): 176 x164 x138mm
• Weight: 710g
• Programming Environment: C/C++ (Arduino IDE)
• Expansion Support: Pre-drilled holes for sensors, camera brackets, and LIDAR mounts

Applications

• ROS & SLAM Prototyping: Serves as the perfect physical foundation for learning Robot Operating System (ROS) concepts, mapping, and navigation algorithms when paired with a master computer or Raspberry Pi.
• AI Vision Tracking: Acts as a highly maneuverable robotic base for object tracking, color recognition, and autonomous following when upgraded with an AI camera module.
• AGV (Automated Guided Vehicle) Simulation: Excellent for prototyping warehouse logistics robots that require omnidirectional strafing to navigate tight corridors and precisely align with docking stations without rotating.
• Advanced Kinematics Research: Ideal for university students and engineers studying mecanum wheel physics, PWM compensation, and complex multidirectional motor control algorithms.
• Agile Robotics Competitions: Provides a robust, high-strength aluminum platform for competitive robotics where rapid sideways and diagonal movements give a tactical advantage over standard 2WD/4WD steering chassis.

Unlock New Capabilities

• Past Projects: If you've already experimented with basic 2WD acrylic robot chassis or built simple line-following cars using an Arduino Uno, you understand the basics of motor control which means you're perfectly ready to upgrade to complex kinematics and professional-grade chassis design.
• Feature Upgrade: This Hiwonder miniAuto base unlocks true omnidirectional movement  allowing your robot to strafe sideways, move diagonally, and rotate in place without changing its forward orientation. It serves as the perfect mechanical foundation for advanced trajectory planning, ROS (Robot Operating System) learning, and AI vision tracking projects.
• Effort Level & Minimum Hardware
• Effort Level: Intermediate

Minimum hardware to get started:

• 2× 18650 Li-ion Batteries: to provide the high current required to drive four TT geared motors simultaneously; standard alkaline batteries will stall under the mechanical load of mecanum movements.
• 18650 Battery Charger: to keep your high-drain power cells replenished between testing sessions.
• Computer with Arduino IDE: to compile and upload the mecanum kinematics and motor control sketches to the UNO.

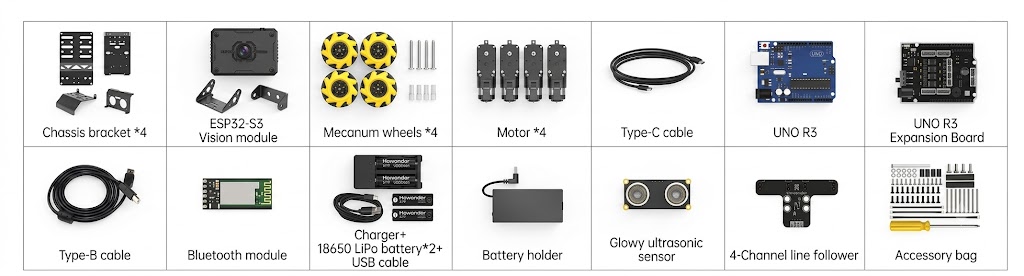

Package Includes

• 1 x Hiwonder miniAuto AI Vision Robot Base with 360° Mecanum Wheels & Arduino UNO R3 Controlle

Frequently Asked Questions

• Is the Hiwonder miniAuto compatible with Raspberry Pi?
  Yes, the aluminum chassis can mechanically house a Raspberry Pi, though this standard kit includes an Arduino UNO R3 for the control layer.
• Can I add a robotic arm to this base?
  Yes, the metal chassis features standard grid mounting holes to accommodate lightweight robotic arms or pan-tilt camera brackets.
• Does the standard kit include the AI vision camera?
  No, the standard kit provides the mecanum robotic base and Arduino controller, but AI cameras and vision modules must be purchased separately.
• Can I use a different microcontroller like an ESP32?
  Yes, you can easily replace the included Arduino UNO R3 with an ESP32 or STM32 by adapting the motor driver shield wiring.
• What voltage does the miniAuto require to run optimally?
  The recommended operating voltage for driving the four TT motors and the expansion board is between 7.4V and 9V DC.
• Can I power the robot using standard AA alkaline batteries?
  Standard AA batteries cannot provide the necessary peak current for four geared motors; high-drain 18650 Li-ion cells are strictly required.
• How much current do the mecanum motors draw under load?
  Each TT motor can draw up to 250mA under heavy friction load, meaning the total system requires at least a 1A to 1.5A continuous power supply.
• How do I connect the four motors to the Arduino?

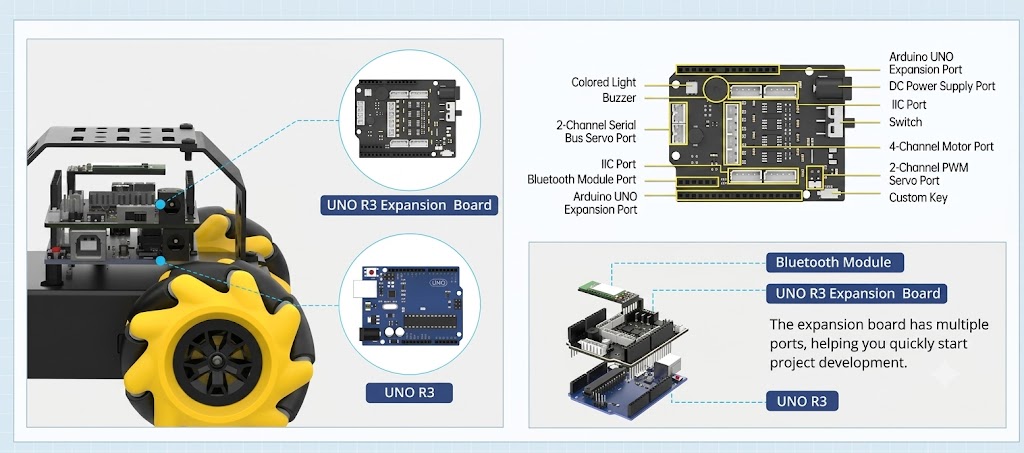

  The motors connect directly to the included motor driver expansion shield, which safely maps the power to the Arduino's digital PWM pins.
• Do I need to solder any wires to assemble the miniAuto?
  No, the standard kit features plug-and-play jumper cables and screw terminals for all essential electronic connections.
• Which pins are left open for adding my own sensors?
  The motor driver shield uses specific PWM pins for the wheels, leaving most of the analog pins and some digital pins available for expansion.
• Which Arduino library should I use for mecanum movement?
  You can write custom kinematics using standard PWM analogWrite() functions, or use open-source mecanum libraries available on GitHub for simpler control.
• Where can I find the default factory code for the miniAuto?
  The factory Arduino sketch is available directly through the Hiwonder official website and their documentation wiki.
• Does the standard kit support ROS (Robot Operating System)?
  While the chassis is excellent for ROS testing, the included Arduino UNO R3 is not powerful enough to run ROS directly; it can act as a serial node receiving commands from a master PC or Pi.
• Why is my miniAuto spinning in circles instead of moving sideways?
  This usually means the mecanum wheels are mounted in the wrong A/B pattern; check the roller orientation against the manual to ensure they point toward the center of the chassis.
• Why do the motors stall when trying to move diagonally?
  Diagonal movement relies on only two wheels turning; if your batteries are low, the voltage drop will cause the active motors to stall under the heavy mechanical friction.
• Why is the Arduino constantly resetting when I throttle the motors?
  This indicates a severe voltage drop, meaning your batteries cannot supply enough current and you need higher-rated, fully charged Li-ion cells.
• My robot drifts forward when it should be strafing perfectly sideways — what is wrong?
  Variations in motor friction or uneven weight distribution can cause drift, which must be corrected by tweaking the individual PWM compensation values in your Arduino code.
