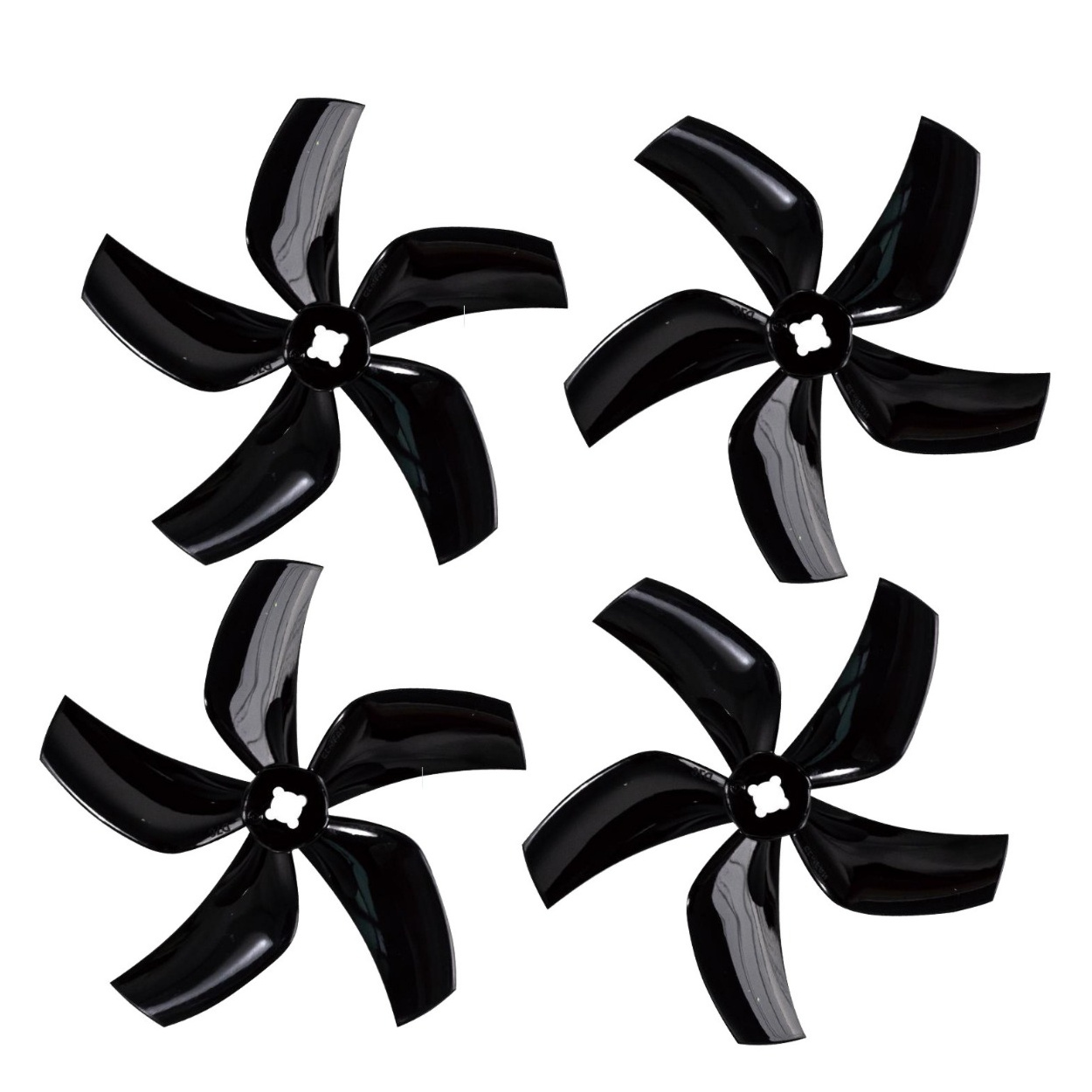

Gemfan D76 5-Blade 3-Inch Cinewhoop Propellers - Hybrid M5/T-Mount Black 2CW + 2CCW

Specifications

• Prop Diameter: 76mm (3.0 Inch class)

• Pitch: 1.8 Inch

• Blades: 5 (Pentapal Design)

• Colour: Black

• Material: Polycarbonate (PC)

• Centre Hole: 5mm (M5) / 1.5mm (T-mount with included insert)

• Centre Thickness: 5.5mm

• Weight: 3.03g per propeller

• Recommended Motors: 1408, 1506, 1606 (2800KV - 3800KV)

Key Applications & Projects

• Pusher Cinewhoops: The default choice for the BetaFPV Pavo30 and similar 3-inch ducted platforms.

• Indoor Real Estate FPV: 5 blades offer a quieter, less aggressive sound profile for flying around people.

• Heavy-Lift Micro Quads: Provides the extra "lift" needed for micro quads carrying naked GoPros or large batteries.

Unlock New Capabilities (Project Evolution)

• Feature Upgrade: The hybrid mount system means you can swap these props between different motor classes (M5 and T-mount) without buying new sets, thanks to the included snap-in adapters.

• Effort Level: Beginner. Compatible with almost any 3-inch motor setup on the market.

Package Includes:

• 2 x Black CW (Clockwise) Gemfan D76 Propellers

• 2 x Black CCW (Counter-Clockwise) Gemfan D76 Propellers

• 4 x T-mount Hub Insert Adapters (For 1.5mm shaft conversion)

FREQUENTLY ASKED QUESTIONS (FAQ)

• Why use 5 blades instead of 3? 5 blades offer smoother thrust and significantly lower noise, which is critical for cinematic video.
• Will these fit a 1.5mm shaft motor? Yes, use the included T-mount hub inserts to convert the 5mm hole to 1.5mm.
• Will these fit standard 5mm threaded motors? Yes, they fit standard M5 motor shafts without the inserts.
• Are these durable for racing? They are durable (PC material), but their 5-blade design is optimized for cinematic stability rather than raw racing speed.
• What is the "D76" measurement? It represents the 76mm (3-inch) prop disk diameter.
• Can I use these on an open-prop (non-ducted) frame? Yes, but they are specifically "Durable Ducted" optimized for the pressure-cooker environment of a duct.
• Do they come with screws? No
• What is the pitch of these props? They have a 3.0-inch pitch for a balance of speed and torque.
• How do I install the T-mount adapters? Simply press-fit the small black plastic inserts into the 5mm center hole until they sit flush.
• How much does each prop weigh? Approximately 3.03 grams.
• Will these fit the DJI Avata? No, the Avata uses a proprietary mounting system; look for Gemfan 2925 props for Avata instead.
• What motor KV is best? Around 2800KV - 3000KV for 6S or 3800KV - 4500KV for 4S setups.
• Are they quieter than 3-blade props? Yes, the 5-blade design shifts the sound to a lower, less annoying frequency.
• Can I use them for "Props-Out" configuration? Yes, just ensure the CW/CCW props match your ESC direction.
• What colours are available? Black, Grey, Yellow, and Pink are the standard Gemfan options.
• Is polycarbonate better than glass fiber? Polycarbonate is more flexible and impact-resistant, making it better for cinewhoops that hit walls.
• What is the center hub thickness? 5.5mm.
• Will these fit on 1204 motors? Only if the motor can handle the high torque of a 5-blade 3" prop; usually, 1408+ is recommended.
• How do I remove the T-mount inserts? Use a small tool to push them back through from the bottom of the hub.
• Can I use these for long-range? No, 5-blade props are less efficient than 2 or 3-blade props for long endurance.
