DevOps for Embedded Systems: The Continuous Delivery Engine for Physical Products

DevOps for Embedded is more than just setting up Jenkins or GitHub Actions; it is about bridging the physical-digital gap. We define the scope of our service as establishing a fully automated, end-to-end firmware development lifecycle, from the developer’s local machine to secure Over-the-Air (OTA) deployment in the field.

Value Proposition: We de-risk the most critical phase of embedded development: the transition from prototype to reliable, continuously serviced product. We solve problems like pipeline continuity stalled by hardware programming, high costs associated with manual testing, and deployment delays caused by fragmented toolchains.

Any team can buy an AI tool; our AI Co-Pilot is different because it is a proprietary system trained on our most valuable asset: years of real-world, closed-loop project data from successful (and failed) HIL tests, field telemetry, and secure boot chain implementations.

• Generative AI (The Creative Partner): Our GenAI system doesn't write firmware; it generates high-quality first drafts of complex CI/CD configuration files (e.g., GitHub Actions workflows, Jenkinsfiles). Its outputs are based on our proven, best-practice architectures for over 100+ hardware-toolchain combinations, automating complex setup and immediately establishing a robust, secure pipeline.
• Machine Learning (The Analytical Partner): Our ML models serve as the analytical partner, constantly monitoring build and test data. By fine-tuning their analysis with private data from past project failures and field anomalies, they predict real-world failures before code merges. For example, the system predicts toolchain conflicts, estimates the likelihood of build failure based on commit size, and manages test farm resource queuing.

• Problem: A tier-1 automotive supplier relied on manual bench testing for new Electronic Control Unit (ECU) firmware. Their deployment process was sequential and slow, requiring weeks to roll out critical security patches, and leading to high regression rates due to non-standardized testing.
• Process: We implemented an EmbedOps pipeline. This included standardizing the cross-compilation toolchain using Docker, automating Unit and Integration tests (for functional safety), and deploying an automated HIL test farm with power cycling and flashing capabilities. We added cryptographic firmware signing into the CI pipeline (DevSecOps) and a secure, incremental OTA deployment system.
• Result: The client reduced the average time-to-market for patches by 80% (from 21 days to less than 4 days) and increased the overall field firmware update success rate to 99.5%.

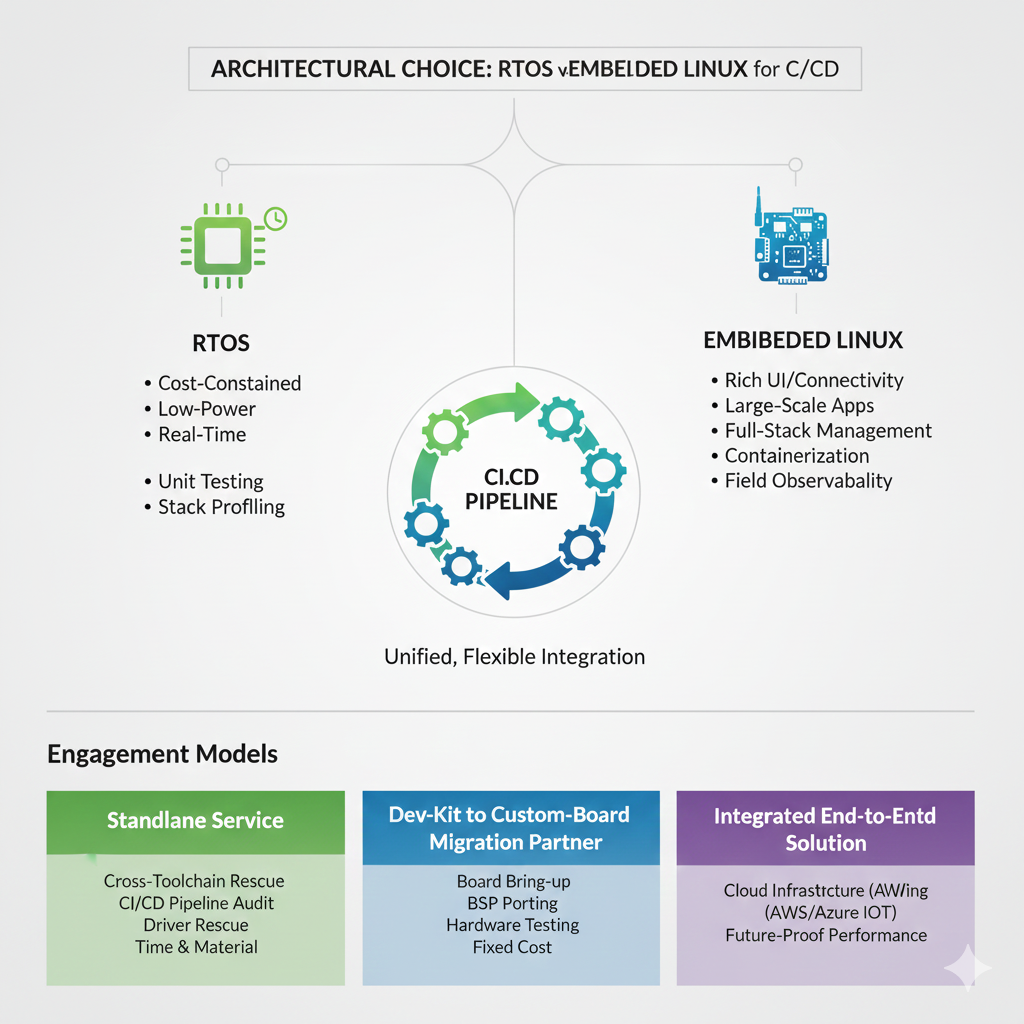

Architectural Choice: When to Choose RTOS vs. Embedded Linux for CI/CD The choice fundamentally changes the scope of the CI/CD pipeline.

• When to Choose RTOS (e.g., FreeRTOS): For cost-constrained, low-power devices with strict real-time requirements. CI/CD primarily focuses on unit testing, static analysis, stack profiling, and minimal binary delta updates.
• When to Choose Embedded Linux (e.g., Yocto): For complex devices requiring rich UIs, extensive connectivity, and large-scale applications. CI/CD manages the full stack—kernel, BSP, bootloaders (U-Boot), and user-space applications—enabling robust features like containerization and extensive field observabili

The Generic/Vendor Trap: The most painful pitfall is relying on a generic Vendor BSP (Board Support Package) and a vendor-provided toolchain. These solutions are often static, proprietary, and lack continuous maintenance, leading to "BSP Rot". When the vendor moves on, your CI/CD continuity breaks, forcing costly, proprietary patch management that prevents you from adopting modern, scalable practices.

The In-House Labyrinth: A DIY approach promises cost savings but guarantees delays and hidden, project-killing costs. Only experts understand the depth of tasks required to make a CI/CD pipeline truly work for physical devices:

• Phase 1 (No-Cost): Initial Consultation & Requirements Scoping We start with a free, no-obligation initial consultation to understand your hardware architecture, software dependencies, and identify critical CI/CD roadblocks specific to your product.
• Phase 2 (Commercials): Proposal & Quoting We detail the formal proposal, outlining the scope, resource allocation, and a transparent fixed or time & material cost based on your engagement model.
• Phase 3-4 (Execution): Pipeline Development & HIL Integration This is the core technical work. We build the CI/CD pipeline (e.g., using GitHub Actions or GitLab CI), implement the HIL test automation, configure secure OTA server integration, and develop the IaC for your environment. Critical milestones: "Reproducible Build Achieved," "HIL Test Farm Operational."

• How do you handle multiple hardware variants in a single CI/CD pipeline? We use Matrix Builds (e.g., in GitHub Actions) and a unified configuration management system (e.g., Yocto layers) to simultaneously build and test firmware for different boards (e.g., STM32, i.MX) and modes (debug/release).
• How do you ensure reproducible builds across teams and over time? By enforcing the use of Docker containers for the entire toolchain (compiler, linker, SDK) and managing these environments as code. This eliminates the "works on my machine" problem and ensures that an older commit can always be rebuilt identically.
• Why is Continuous Delivery (CD) difficult in embedded, and how do you achieve it? CD is often stalled at hardware programming and certification. We achieve it through automated HIL testing for instant validation, secure Binary Delta Update logic to minimize download size, and A/B partition schemes for guaranteed rollback mechanisms.
• How do you minimize feedback latency in the CI pipeline? We employ aggressive caching of build artifacts, parallelize independent build jobs, and use technologies like QEMU runners to allow Unit and Integration tests to run without waiting for physical hardware.
• How do you prevent "BSP Rot" after the initial delivery? Our approach uses Infrastructure-as-Code (IaC) principles for the BSP, meaning the configuration is version-controlled and continuously tested against new kernel patches and toolchain updates.

• What is your approach to DevSecOps (firmware signing)? We integrate security testing (Static Analysis, Dependency Scanning) and mandatory cryptographic signing of all firmware artifacts directly into the CI pipeline. Devices in the field are configured to verify these signatures before applying any update.
• How do you integrate field telemetry with the development pipeline? We co-design the device’s data contract (API/MQTT/Protobuf) to ensure field telemetry (e.g., crash logs, boot times, error codes) is automatically fed back to the CI/CD system, creating a closed-loop feedback mechanism for developers.

• How do you handle board bring-up in a continuous fashion? The board bring-up process is structured as a series of automated, iterative tests tied to the pipeline. We start with simple LED/GPIO tests and progressively unlock complex features (DRAM, high-speed interfaces) in a fully traceable manner.
• Do I own the CI/CD code and the Infrastructure-as-Code? Absolutely. All source code, build scripts, configuration files, and IaC are the client's intellectual property and are delivered as part of the handoff.
• Why aren't you the cheapest option available? Because we don't deliver a generic solution or a static BSP. We deliver a custom-tailored, production-ready, continuously-maintained system that de-risks your product, accelerates your time-to-market, and significantly lowers your total cost of ownership over the product's 5-10 year lifecycle.

Hello,

I am interested in discussing your DevOps for Embedded Systems service.

• Current Hardware: [e.g., NXP i.MX 8M Nano Custom Board]
• Current Software Stack: [e.g., Yocto 4.0, FreeRTOS on a co-processor]
• Primary Goal: [e.g., Implement secure, automated OTA updates / Standardize CI/CD across 5 product lines]
• Current Pain Point: [e.g., Manual testing takes 2 weeks / Unreliable cross-compilation toolchain]
• Target Timeline: [e.g., Need a working pipeline in 3 months]

Please contact me to set up an initial consultation.
