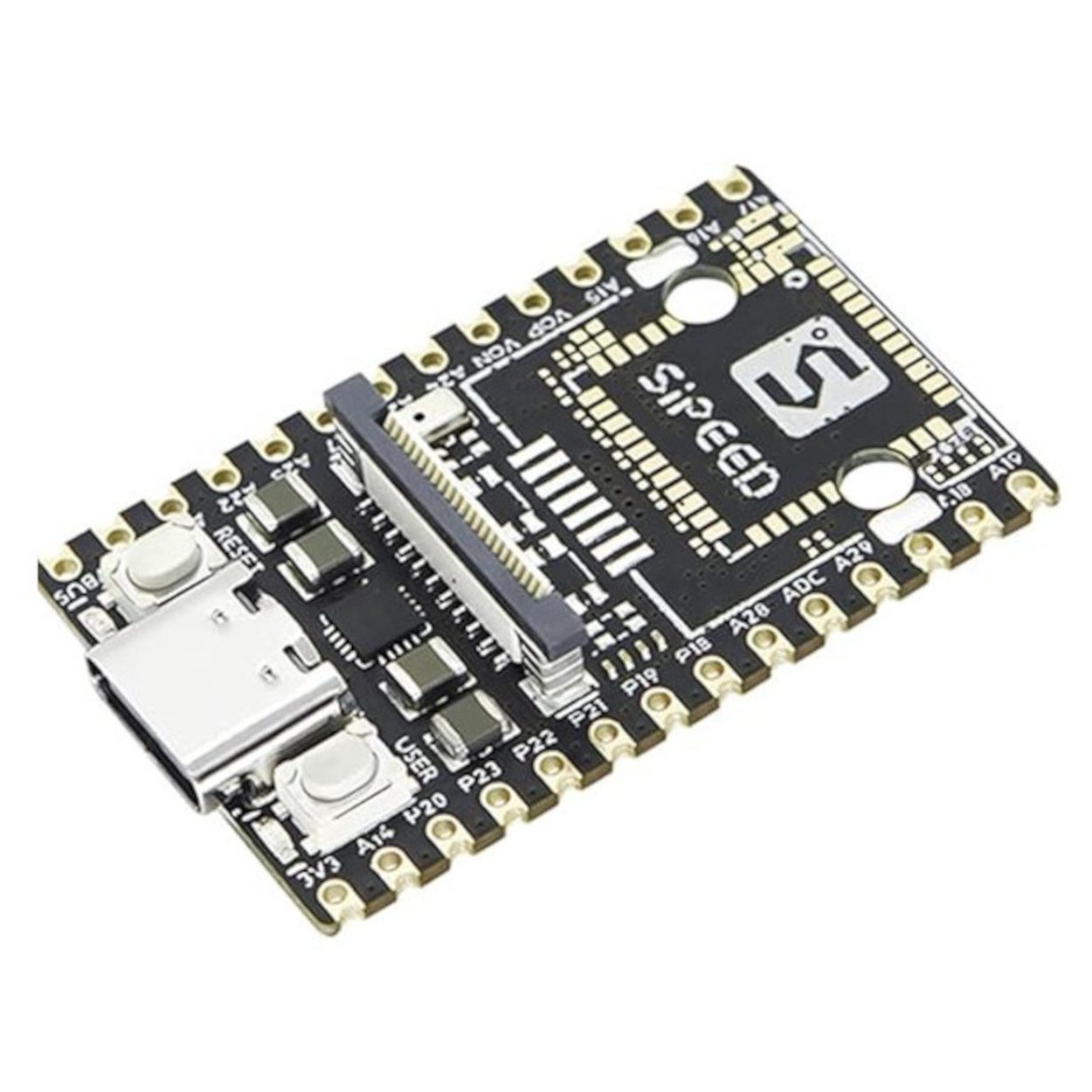

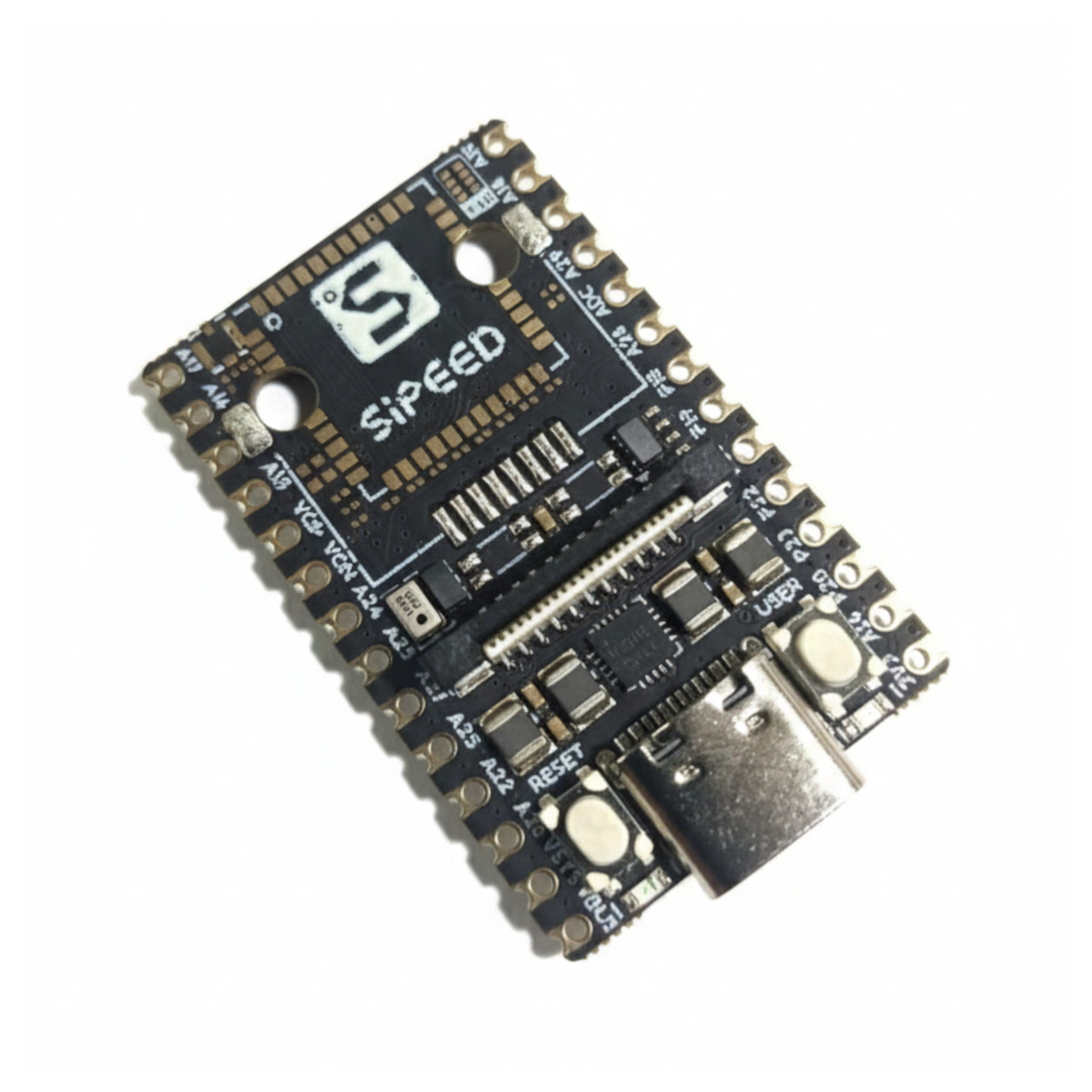

Sipeed LicheeRV Nano-B Basic Edition RISC-V SBC Linux Development Board with Ethernet

₹1,499.00 ₹ 1270.34 + 228.66 GST
In stock
SKU
PRO5512

1-3 Days Express Shipping in India Available

Bulk Pricing
QTYUnit Price(Inlc. GST)
10+ ₹1,469.02 ₹ 1244.93 + 224.09 GST
25+ ₹1,439.04 ₹ 1219.53 + 219.52 GST
50+ ₹1,409.06 ₹ 1194.12 + 214.94 GST
75+ ₹1,379.08 ₹ 1168.71 + 210.37 GST

Contact us for Higher Quantities.

Contact us for Higher Quantities

High-performance RISC-V development board powered by the SG2002 SoC, featuring Linux support, 256MB DDR3, and integrated 100Mbps Ethernet for edge computing and IoT gateway projects.

The LicheeRV Nano is Sipeed’s latest versatile RISC-V Linux thumb development board

Are you ready to break free from the limitations of traditional microcontrollers and enter the world of high-performance RISC-V Linux computing?

The Sipeed LicheeRV Nano-B Basic Edition is a thumb-sized powerhouse designed for developers who need more than just an MCU. While your typical ESP32 might struggle with complex image processing or heavy filesystem tasks, the LicheeRV Nano-B thrives. Powered by the SOPHGO SG2002 SoC, it features a unique multi-core architecture: a high-speed 1GHz RISC-V (C906) or ARM A53 (selectable) core for your primary OS, a secondary 700MHz RISC-V core for real-time tasks, and a dedicated 8051 low-power core.



Specifications

      SoC: SOPHGO SG2002

  • Major Core: 1GHz RISC-V C906 / ARM A53 (Switchable)
  • Minor Core: 700MHz RISC-V C906
  • Low-Power Core: 8051 (25-300MHz)
  • NPU: 1.0 TOPS INT8 (Supports BF16)
  • RAM: 256MB DDR3 (2Gbit)
  • Storage: MicroSD Card Slot (Supports up to 1TB)
  • Audio: Onboard Analog MEMS Microphone + 1W Speaker Power Amplifier
  • USB: USB 2.0 OTG Type-C (Power + Data + Serial Debug)
  • I/O: 2x 14-pin 2.54mm headers (Breadboard friendly)
  • Buttons: Dedicated Reset and Boot buttons
  • OS Support: Buildroot Linux, Debian, Fedora

      Video Interfaces:

  • Output: 2-lane MIPI DSI (supports 480845 and 8001280 touchscreens)
  • Input: 4-lane MIPI CSI (Supports dual-split camera input)

Applications

  • Edge AI Vision: Deploy YOLOv11 models using the 1 TOPS NPU for real-time object detection.
  • Smart Home Gateway: Use Linux to manage Zigbee/Matter protocols via external USB dongles.
  • Portable Retro Console: Drive a MIPI-DSI display for high-refresh-rate emulators.
  • Industrial Monitoring: Integrate into 100M Ethernet networks (via the module expansion) for remote data logging.

Virtual Technician & Wiring

  •  WARNING: This board operates on 3.3V Logic. Connecting 5V signals directly to the GPIO pins will permanently damage the SoC. Use level shifters for 5V sensors.
  • Power: Use the USB-C port (5V). Maximum current draw can reach 1A during NPU-heavy tasks.
  • Serial Debugging: Connect your USB-to-TTL converter to Pins A16 (TX) and A17 (RX). Baud rate: 115200.

Pin Mapping:

  • A26: User LED
  • A17: UART0_RX
  • A16: UART0_TX

Package Includes:

  • 1 x Sipeed LicheeRV Nano-B Basic Edition RISC-V SBC Linux Development Board with Ethernet

Project Evolution

  • Past Projects (Prerequisites): If you have already mastered the ESP32 or Arduino Mega, you have hit the ceiling of real-time processing and complex UI management.
  • Feature Upgrade: The LicheeRV Nano-B unlocks Multi-threading, True Linux File Systems, and AI Acceleration. It allows you to run Python, C++, and sophisticated neural networks natively on the hardware.

Technical FAQs (20)

  • Does the LicheeRV Nano-B include WiFi?
    No, the 'B' version is the Basic edition. For WiFi/BT, look for the 'W' or 'WE' versions.
  • Can I run Python on this board?
    Yes, the Buildroot Linux environment supports Python 3.
  • How do I switch between RISC-V and ARM cores?
    This is usually handled via a hardware pin pull-up/down during boot; however, the Sipeed firmware defaults to RISC-V.
  • What is the maximum MicroSD card capacity supported?
    It supports up to 1TB MicroSD cards.
  • What is the default login for the Linux image?
    User: root, Password: root.
  • Can I use it with a Raspberry Pi Camera?
    You need a specific 22-pin to 15-pin FPC adapter to use standard RPi cameras.
  • What voltage does the GPIO operate at?
    It is strictly 1.8V/3.3V compatible depending on IO bank settings.
  • How much NPU power does it have?
    It provides 1.0 TOPS for INT8 operations.
  • Can I power it via the GPIO pins?
    Yes, via the 5V and GND pins on the header.
  • Does it support hardware video encoding?
    Yes, it supports H.264 and H.265 encoding/decoding at 5M@30fps.
  • Is there an onboard microphone?
    Yes, an analog MEMS microphone is integrated.
  • Can I connect a speaker directly?
    Yes, there is an onboard 1W power amplifier for direct speaker connection.
  • What is the spacing between the pin headers?
    800mil, making it breadboard compatible.
  • How do I flash the OS?
    Use dd or BalenaEtcher to flash the .img file to a MicroSD card.
  • Does it support I2C and SPI?
    Yes, multiple I2C and SPI buses are broken out to the GPIO.
  • Is the 8051 core programmable?
    Yes, it is intended for ultra-low-power sensing and housekeeping.
  • Can it run Ubuntu?
    Experimental Ubuntu images are being ported, but Buildroot/Debian is currently most stable.
  • What is the current consumption?
    Approximately 200mA at idle, up to 1A under full load.
  • Does it have a battery charging circuit?
    No, external power management is required for battery use.
  • Is this board suitable for AI inference?
    Yes, it is specifically designed for Edge AI vision tasks.
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

How to Order?

Probots sells every Electronics Part for your next Project. You can order 10,000+ Electronic Parts Online - Arduino, Raspberry Pi, NodeMCU Development Boards, Sensors, Motors, Motor Drivers, SMPS, Plastic Enclosures etc in India directly on probots.co.in

  • Place an order online our website probots.co.in for quick and fast delivery
  • You can contact us by phone, Whatsapp or Mail for bulk enquiries, technical queries or order related enquiries before placing the order.
  • If you require a Quotation or PI for your company, send us a request mail and we will help you with it.

Delivery Time?

We delivery electronics components and parts throughout India using standard couriers like Bluedart, Delhivery & India Post.

  • Dispatch Time: 1 Working Day for most orders
  • Guranteed Delivery Time: 1-3 days within India under Express Shipping

How to buy Electronics Components in Bangalore?

  • We offer store pickups for walkin customers in Bangalore. This is the fastest way to get electronic components in Bangalore.
  • Customers can visit our store to buy parts directly
  • Alternatively, you can place orders online and select Select Pickup as the delivery option and have your order picked up by Dunzo, Porter, etc. Please contact us for confirmation before arranging a pickup.

Need Help?

For order related queries contact -

Probots sells every Electronics Part for your next Project. You can order 10,000+ Electronic Parts Online - Arduino, Raspberry Pi, NodeMCU Development Boards, Sensors, Motors, Motor Drivers, SMPS, Plastic Enclosures etc in India directly on probots.co.in

We offer specialized services for Bulk, Wholesale & B2B Customers like discounted prices, additional shipping options, customised products, etc . Customer with large quantity & regular orders qualify for the specialised discounted rates.

We also offer dedicated sales team to assist you with the order process by providing sales quotations, PI, technical support for choosing products, etc.

Note: Business Orders are processed manually and usually take 1-3 days  to process compared to placing the order directly on our website. Please plan your purchases accordingly.

Need Help?
For bulk enquiries contact us by  -

Customer also viewed

20 x 4 LCD with Green Backlight
20 x 4 LCD with Green Backlight
Rating:
89%
₹499.00 ₹ 422.88 + 76.12 GST
  Industrial-Grade 120mm Copper Tube Condenser Radiator & 220V AC Fan Assembly
Industrial-Grade 120mm Copper Tube Condenser Radiator & 220V AC Fan Assembly
Rating:
90%
₹3,499.00 ₹ 2965.25 + 533.75 GST
80MM Aluminum Water Cooling Radiator with Fan DIY
80MM Aluminum Water Cooling Radiator with Fan DIY
Rating:
88%
₹2,699.00 ₹ 2287.29 + 411.71 GST
ACEBOTT Smart Home STEM Super Starter Educational DIY Kit ESP32 Wifi-IoT QE035
ACEBOTT Smart Home STEM Super Starter Educational DIY Kit ESP32 Wifi-IoT QE035
₹24,999.00 ₹ 21185.59 + 3813.41 GST
Multipurpose Infrared Obstacle Sensor
Multipurpose Infrared Obstacle Sensor
Rating:
89%
₹70.00 ₹ 59.32 + 10.68 GST
Attiny2313 - 20 pin AVR
Attiny2313 - 20 pin AVR
Rating:
90%
₹199.00 ₹ 168.64 + 30.36 GST
L293D
L293D
Rating:
92%
₹89.00 ₹ 75.42 + 13.58 GST

Similar Products in this Category

TMK063ABJ104KP-F 25V 0.1uF X5R ±10% 0201 Multilayer Ceramic Capacitors MLCC - SMD/SMT
TMK063ABJ104KP-F 25V 0.1uF X5R ±10% 0201 Multilayer Ceramic Capacitors MLCC - SMD/SMT
Rating:
91%
₹17.00 ₹ 14.41 + 2.59 GST
ESP32-S3-WROOM-1 N8R2 Chipset Module 8 Mbit Flash WIFI Bluetooth
ESP32-S3-WROOM-1 N8R2 Chipset Module 8 Mbit Flash WIFI Bluetooth
₹459.00 ₹ 388.98 + 70.02 GST
3.5 mm Audio Connector - Male
3.5 mm Audio Connector - Male
Rating:
90%
₹40.00 ₹ 33.9 + 6.1 GST

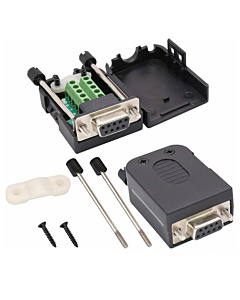

DB9 Female to Screw Terminal Breakout with Case
DB9 Female to Screw Terminal Breakout with Case
Rating:
91%
₹149.00 ₹ 126.27 + 22.73 GST
MechX  Wide Metal Strip - 11X2 Holes
MechX Wide Metal Strip - 11X2 Holes
Rating:
92%
₹75.00 ₹ 63.56 + 11.44 GST
HB9500-9.5-9P 9.5mm Pitch 9-Pin Barrier Terminal Connector
HB9500-9.5-9P 9.5mm Pitch 9-Pin Barrier Terminal Connector
Rating:
89%
₹135.00 ₹ 114.41 + 20.59 GST
BT169D  Thyristor logic level TO-92
BT169D Thyristor logic level TO-92
Rating:
88%
₹22.00 ₹ 18.64 + 3.36 GST
1000mm Trapezoidal Lead Screw 8mm Threaded 2mm Pitch
1000mm Trapezoidal Lead Screw 8mm Threaded 2mm Pitch
Rating:
89%
₹799.00 ₹ 677.12 + 121.88 GST
PB-BLDC-5840-3650 24V 80 RPM  Brushless DC Worm Gear Motor with Encoder
PB-BLDC-5840-3650 24V 80 RPM Brushless DC Worm Gear Motor with Encoder
Rating:
92%
₹4,899.00 ₹ 4151.69 + 747.3 GST

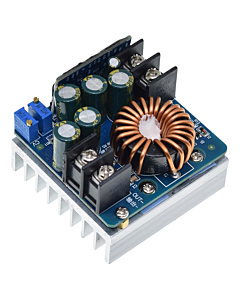

400W 15A DC-DC Step Down Buck Converter CC CV Adjustable Power Module
